YTNSM-05150535-P40 is a wireless signal shielding module dedicated to 5150-5350MHz signal. This module has the advantages of high average output power, good in band flatness, small upper and lower sideband offset and so on.
Product Specifications
| Signal bandwidth | 5150-5350MHz |
| Output power | 43dBm |
| Working voltage | 24V |
| Power flatness | <1dB |
| Upper sideband drift | <10MHz |
| Lower sideband drift | <10MHz |
Product Application
5150-5350MHz wireless signal shielding

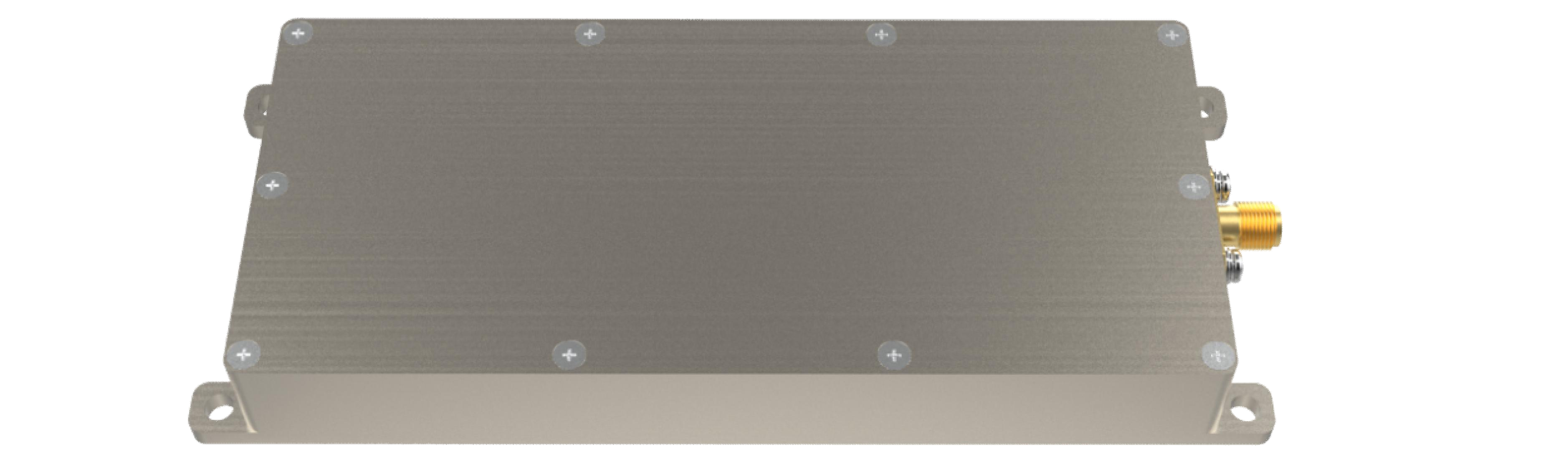

Product Display

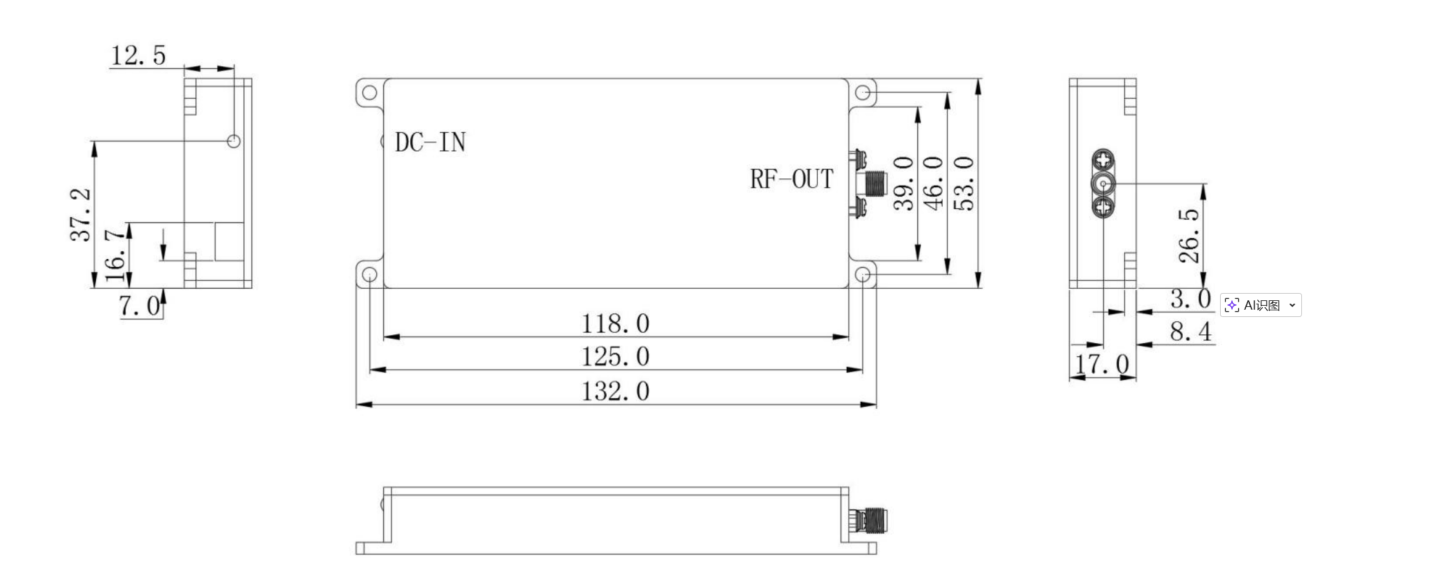

Product Dimensions

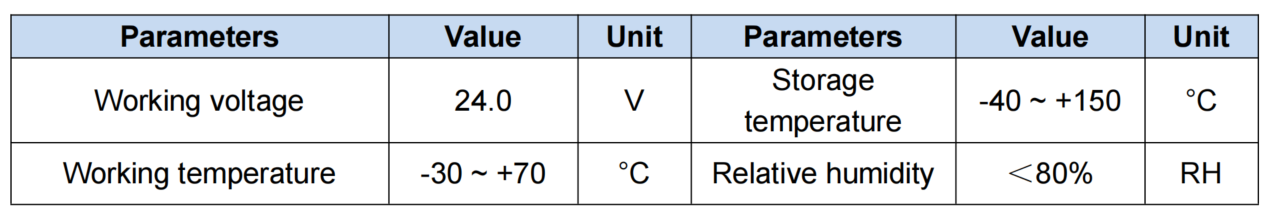

Working Conditions

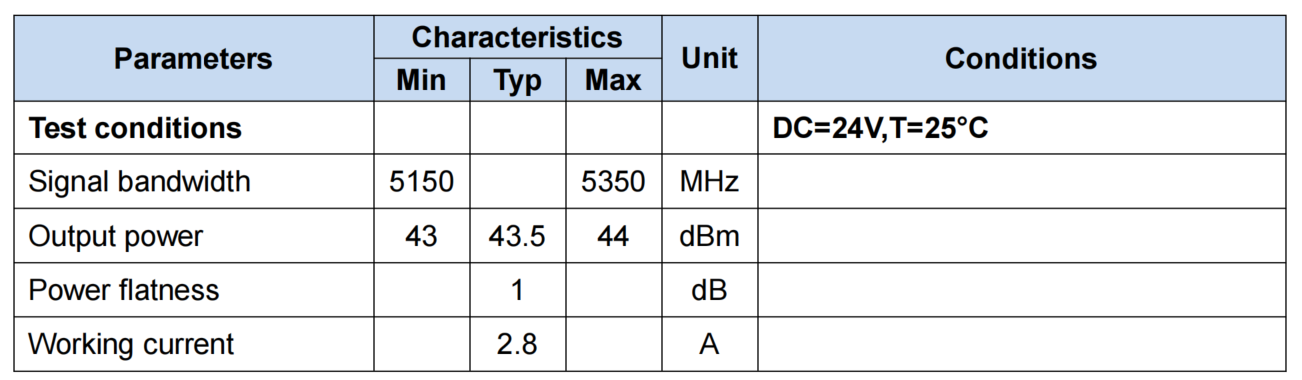

Electrical Characteristics
