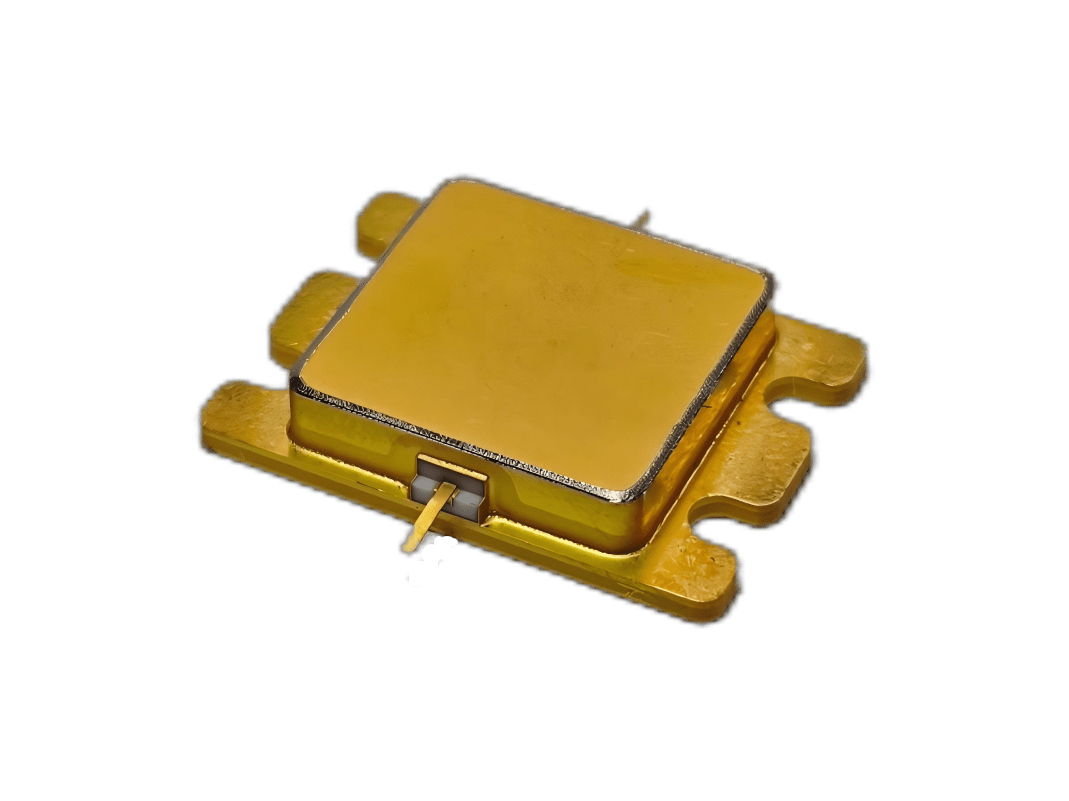

160W X-band Matched Power Amplifier

160W X-band Matched Power Amplifier

Category Matched PA Tag YTNSC-078098-P52

Product Parameters:

Frequency Range	7.8~9.8GHz
Output Power	52dBm
Input Power	43dBm
Power Gain	9dB
Drain Efficiency	40%
Bias (Vg, Vd)	-3~-2V，40V
Pulse Width, Duty Cycle	100us，10%
Power Gain Flatness	-0.8~0.8dB
