YTNSM-00420045-P45 is a wireless signal shielding module dedicated to 420-450MHz signal. This module has the advantages of high average output power, good in band flatness, small upper and lower sideband offset and so on.
Product Specifications
| Signal bandwidth | 420-450MHz |
| Output power | 43dBm |
| Working voltage | 28V |
| Power flatness | <1 dB |
| Upper sideband drift | <10 MHz |
| Lower sideband drift | <10 MHz |
Product Application
ISM、433MHz wireless signal shielding

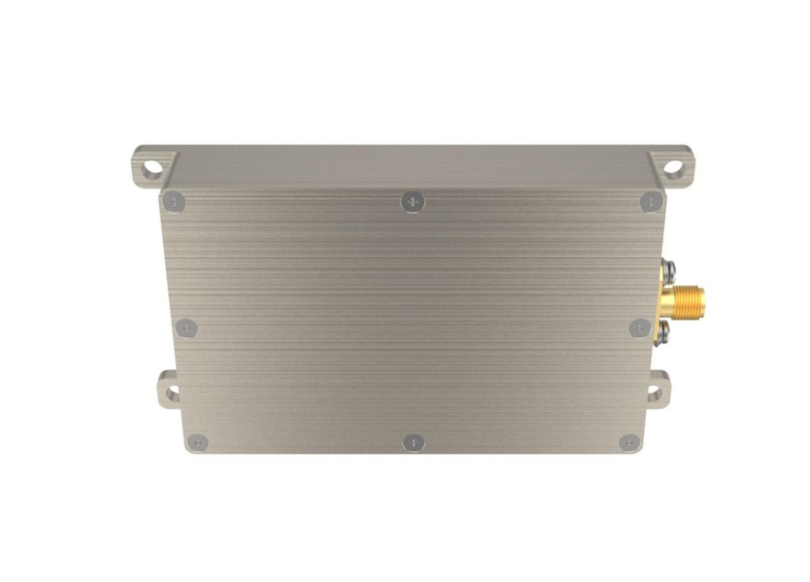

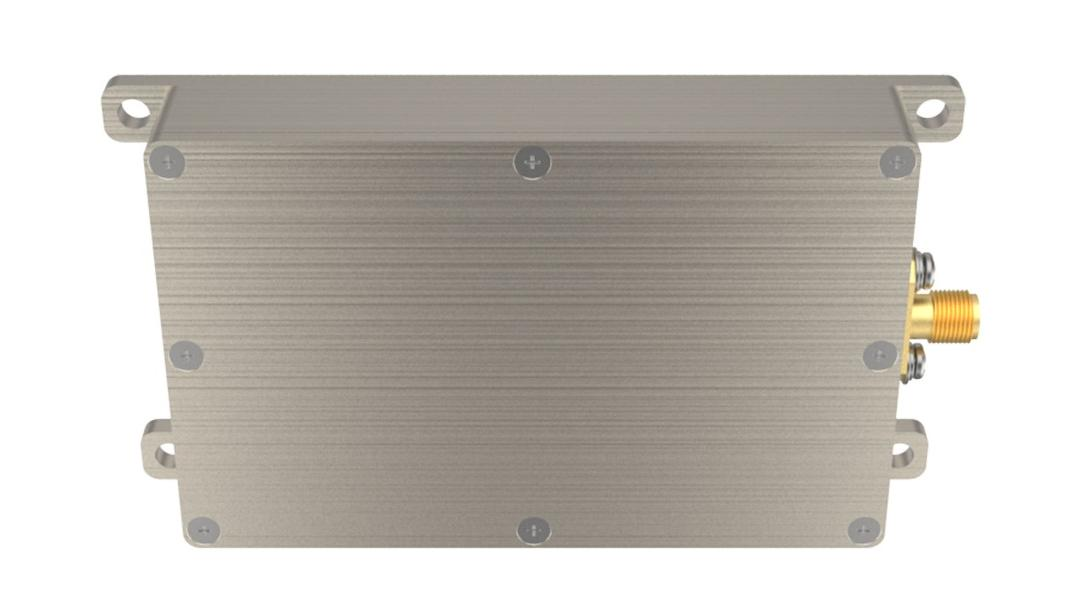

Product Display

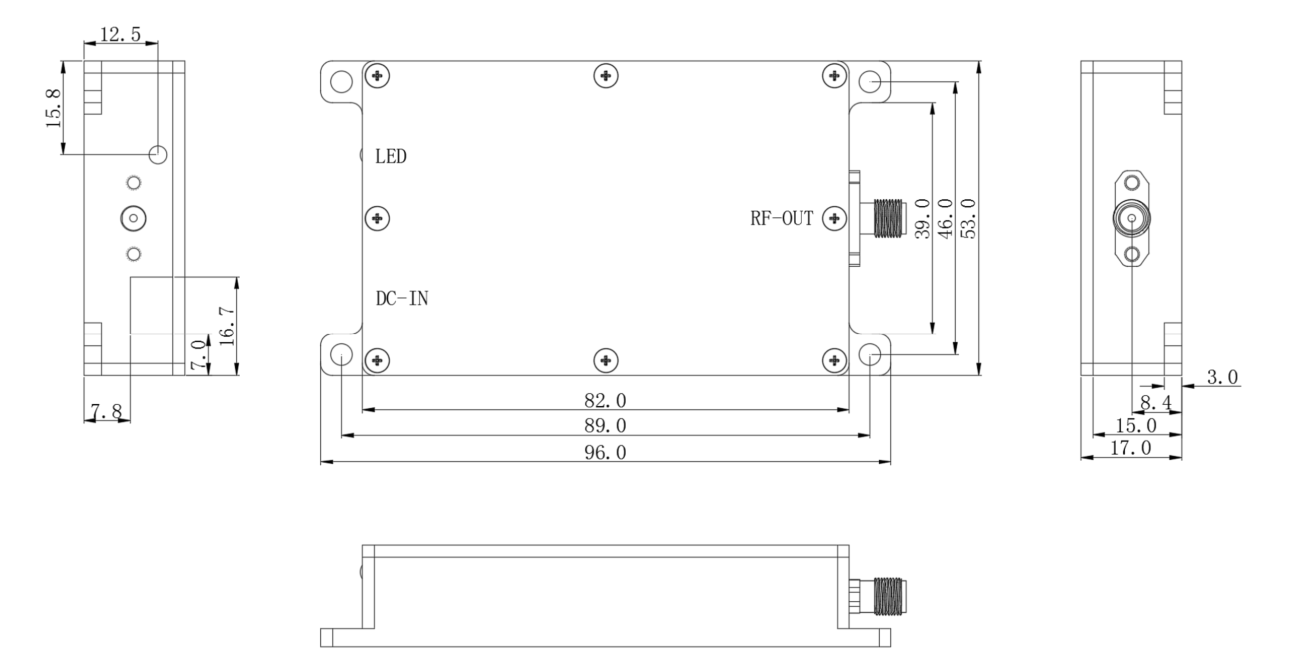

Product Dimensions

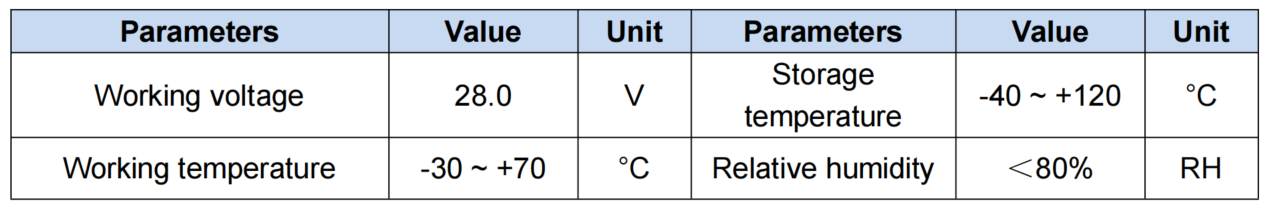

Working conditions

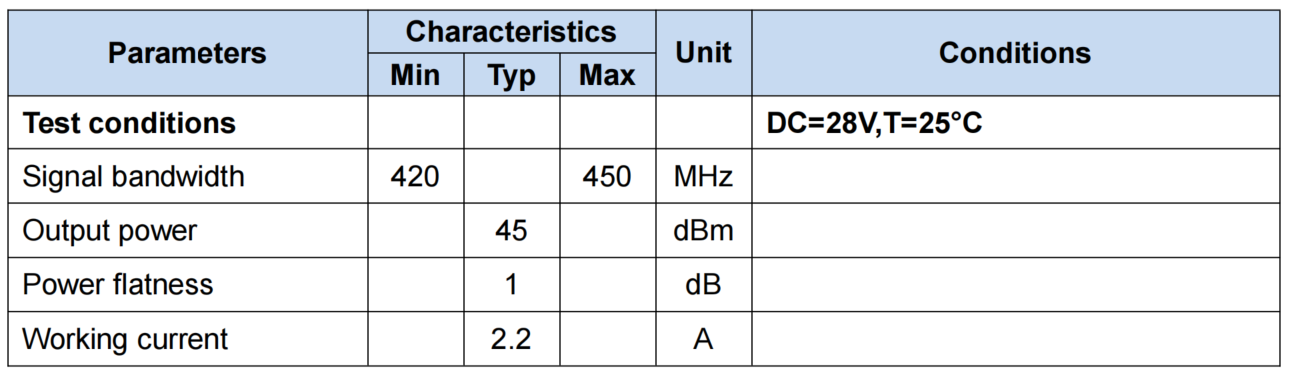

Electrical Characteristics
