30W 0.94Ghz Defense PA

30W 0.94Ghz Defense PA
Categories , Tag

YTNSM-00840094-P45 is a wireless signal shielding module dedicated to 840-940MHz signal. This module has the advantages of high average output power, good in band flatness, small upper and lower sideband offset and so on.

Ask for Datasheet

Product Parameters:

Product Specifications

  • Signal bandwidth: 840-940MHz

  • Output power: 45dBm

  • Working voltage: 28V

  • Power flatness: <1 dB

  • Upper sideband drift: <10 MHz

  • Lower sideband drift: <10 MHz

Product Application

■ GSM/CDMA、820-960MHz wireless signal shielding

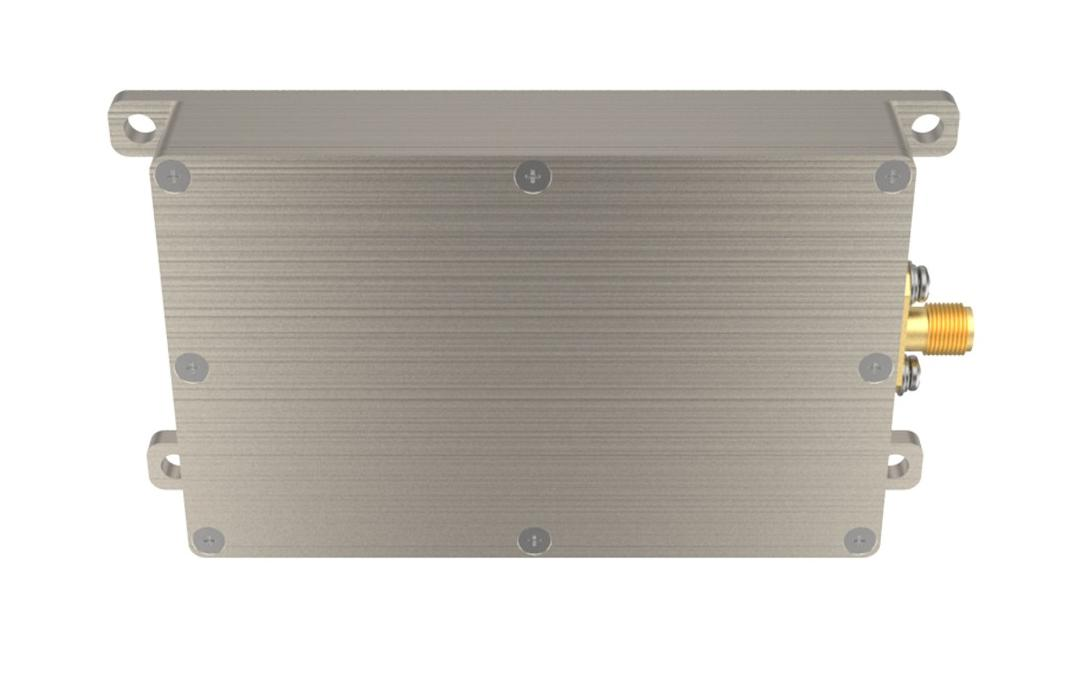

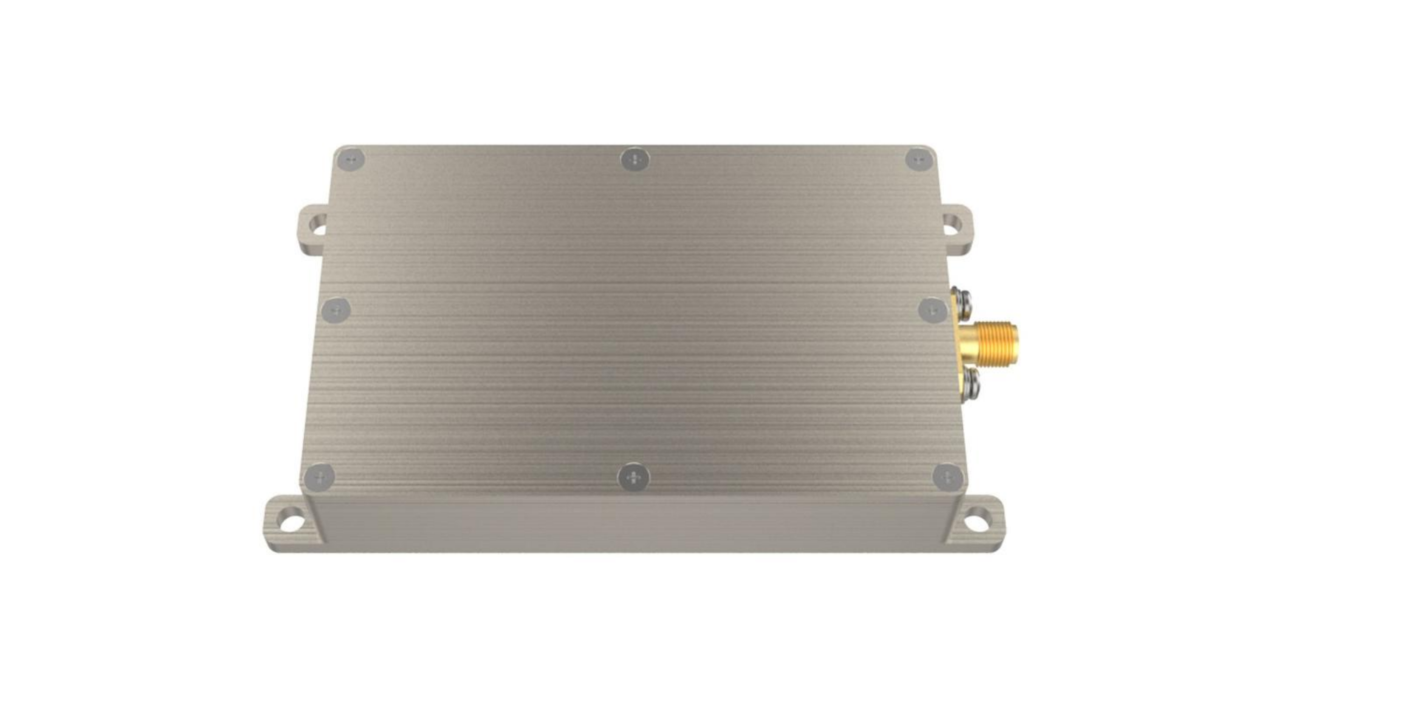

Product Display

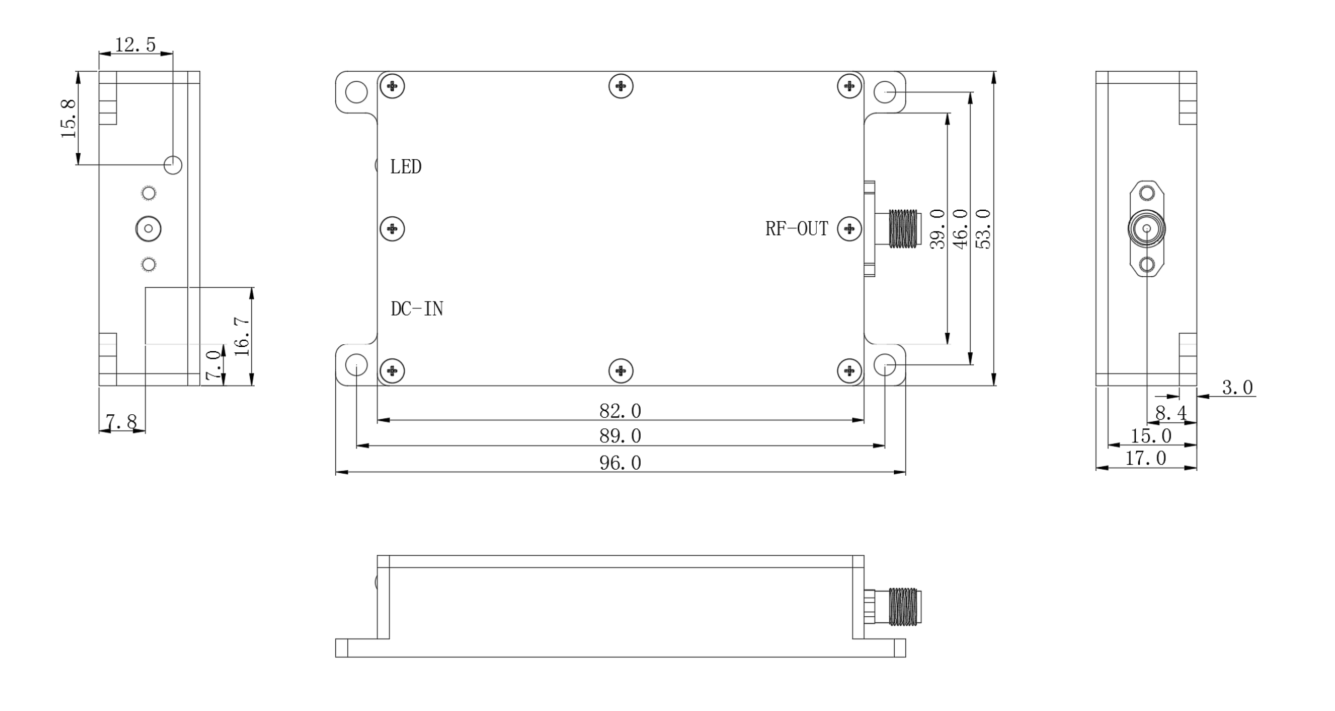

Product Dimensions

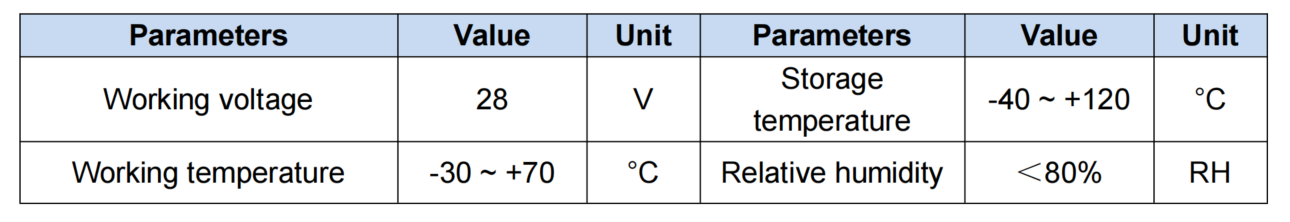

Working Conditions

Electrical Characteristics
