YTNSM-02400250-P45 is a wireless signal shielding module dedicated to 2400-2500MHz signal. This module has the advantages of high average output power, good in band flatness, small upper and lower sideband offset and so on.
Product Specifications
Signal bandwidth: 2400-2500MHz
Output power: 45dBm
Working voltage: 28V
Power flatness: <1dB
Upper sideband drift: <10 MHz
Lower sideband drift: <10 MHz
Product Application

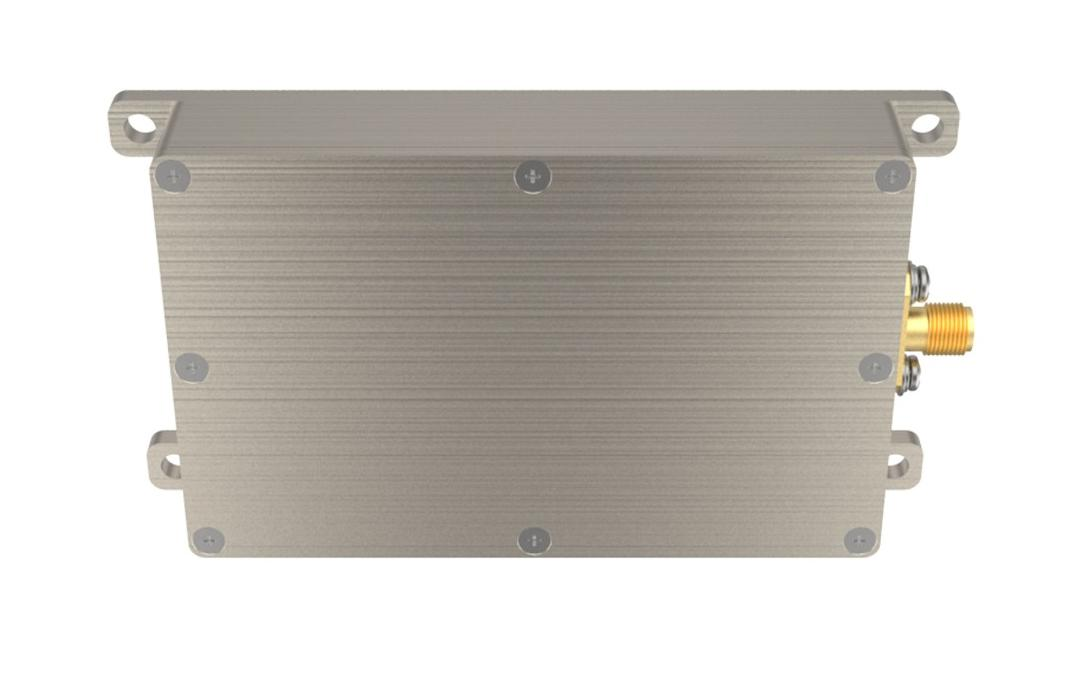

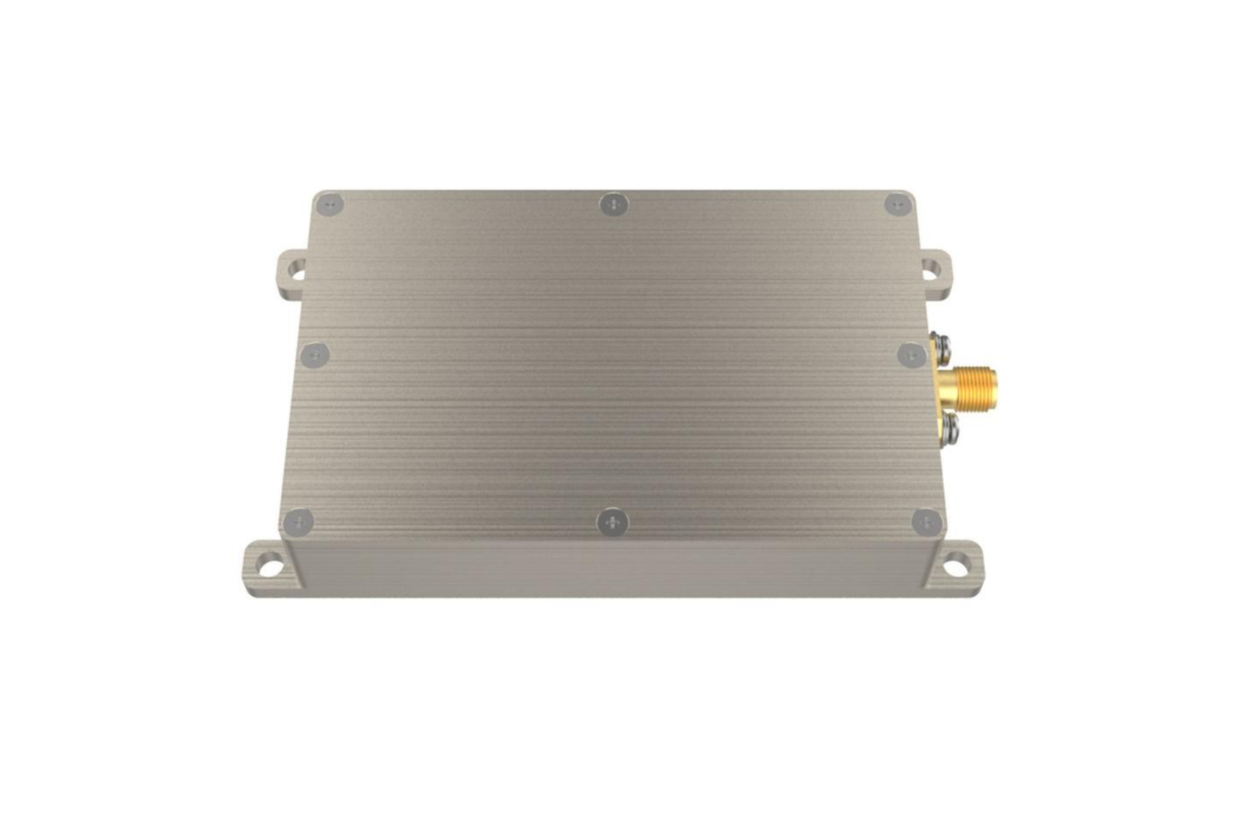

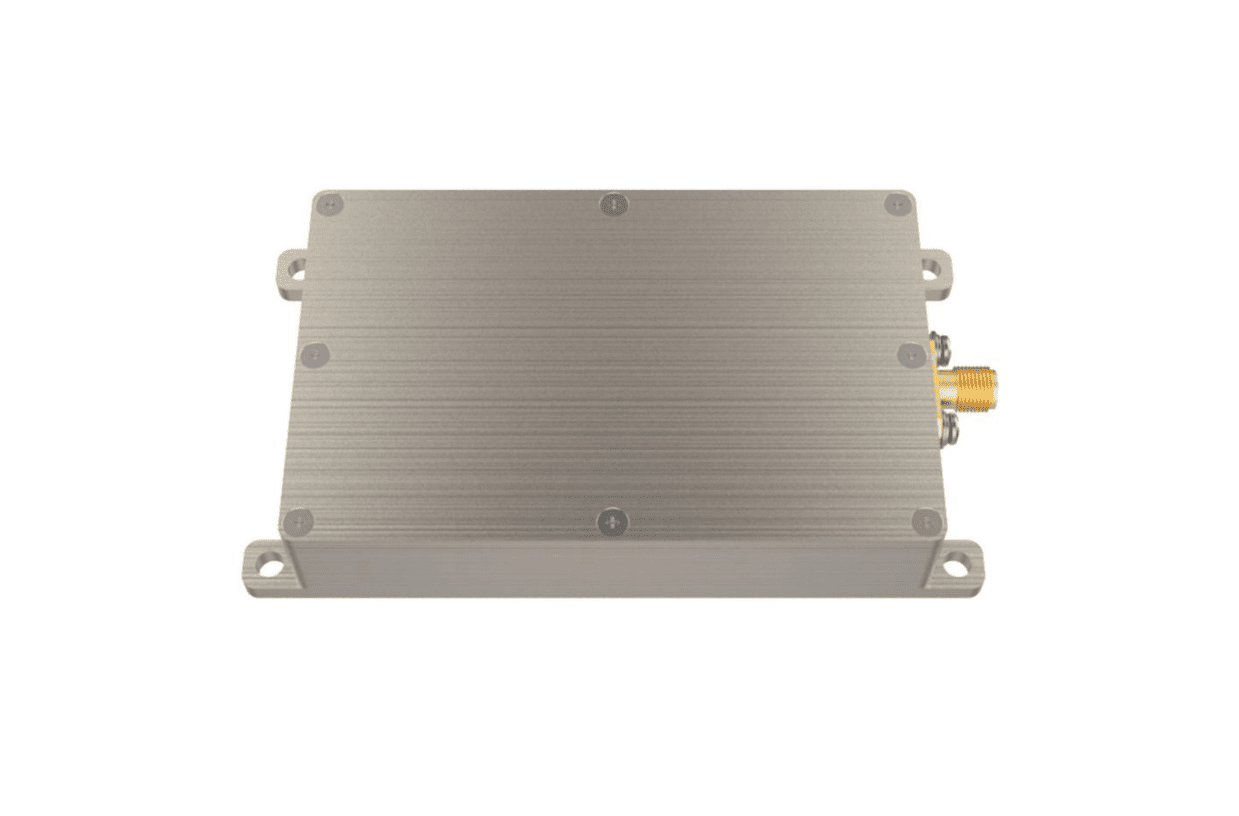

Product Display

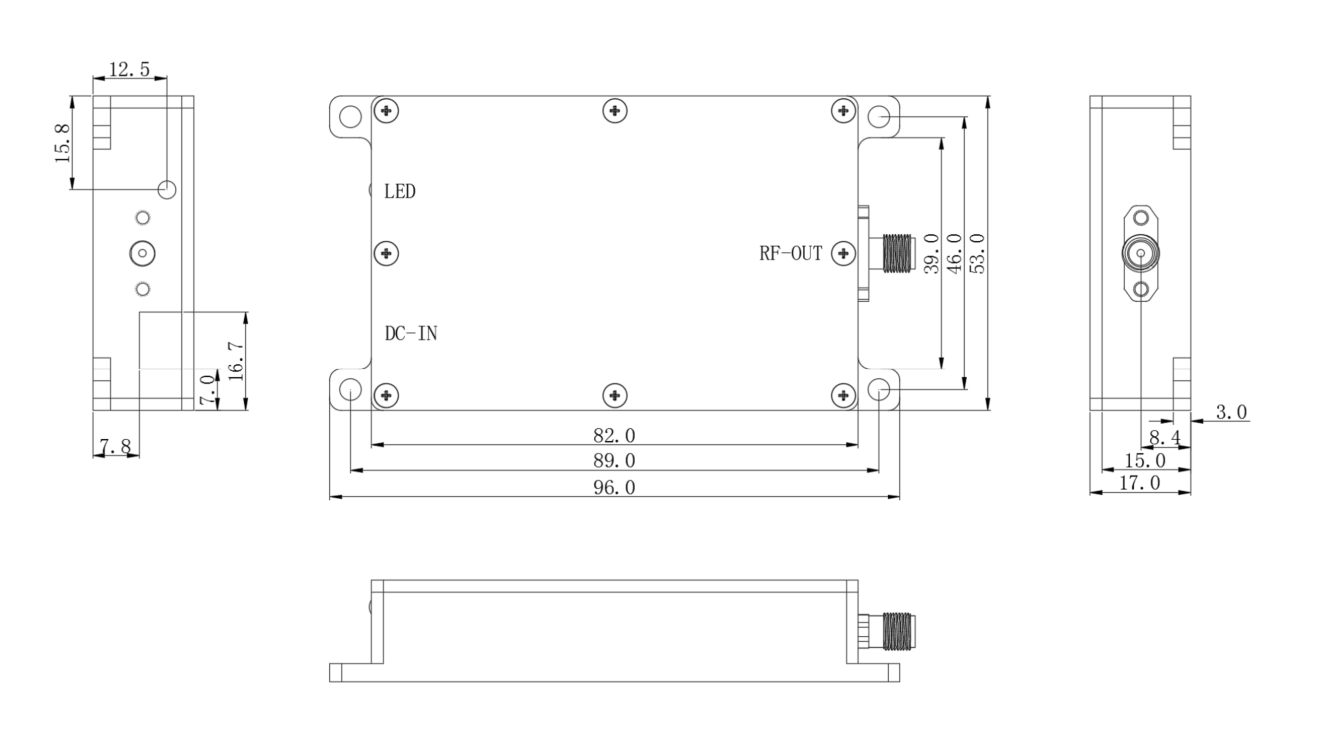

Product Dimensions

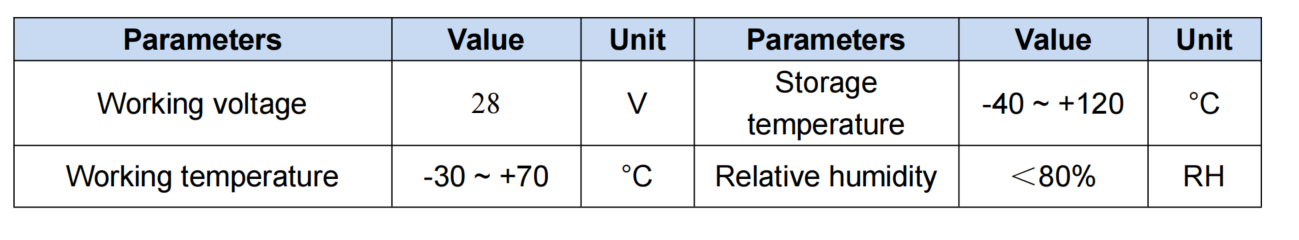

Working Conditions
Electrical Characteristics
