YTNSM-00420045-P47 is a wireless signal shielding module dedicated to 420-450MHz signal. This module has the advantages of high average output power, good in band flatness, small upper and lower sideband offset and so on.
Product Specifications
Signal bandwidth: 420-450MHz
Output power: 47dBm
Working voltage: 28V
Power flatness: <1dB
Upper sideband drift: <10 MHz
Lower sideband drift: <10 MHz
Product Application

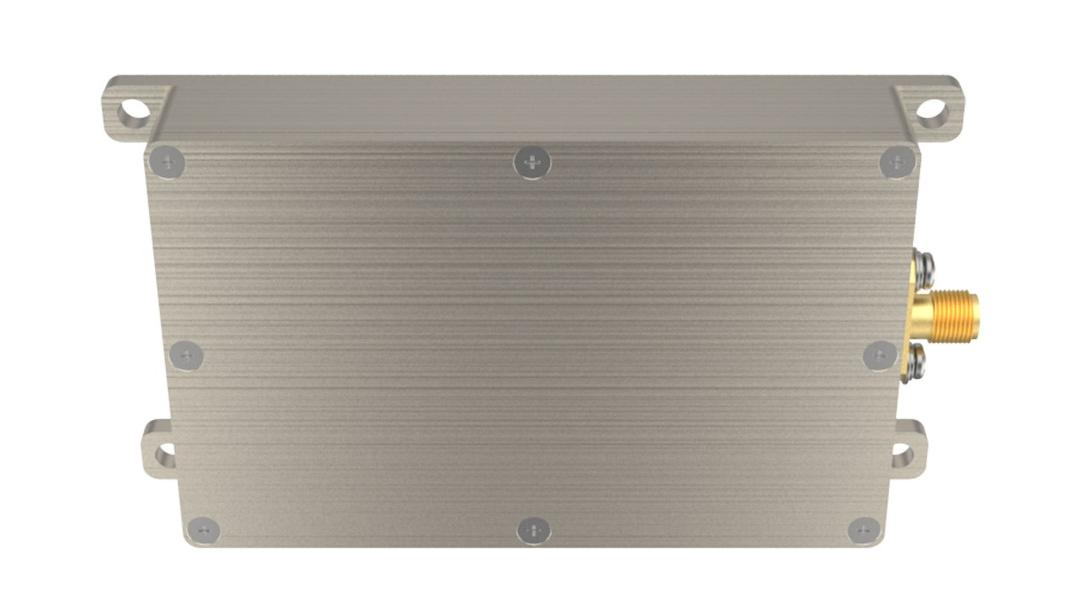

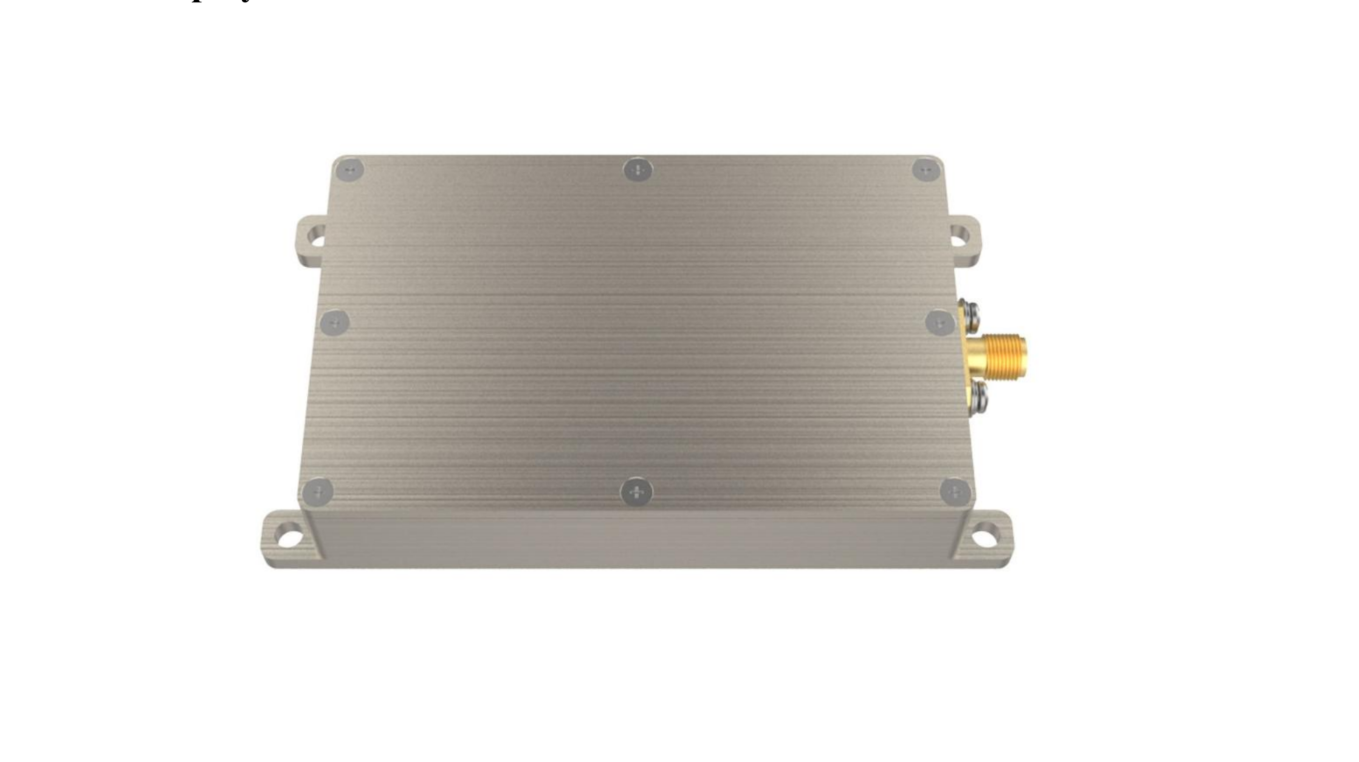

Product Display

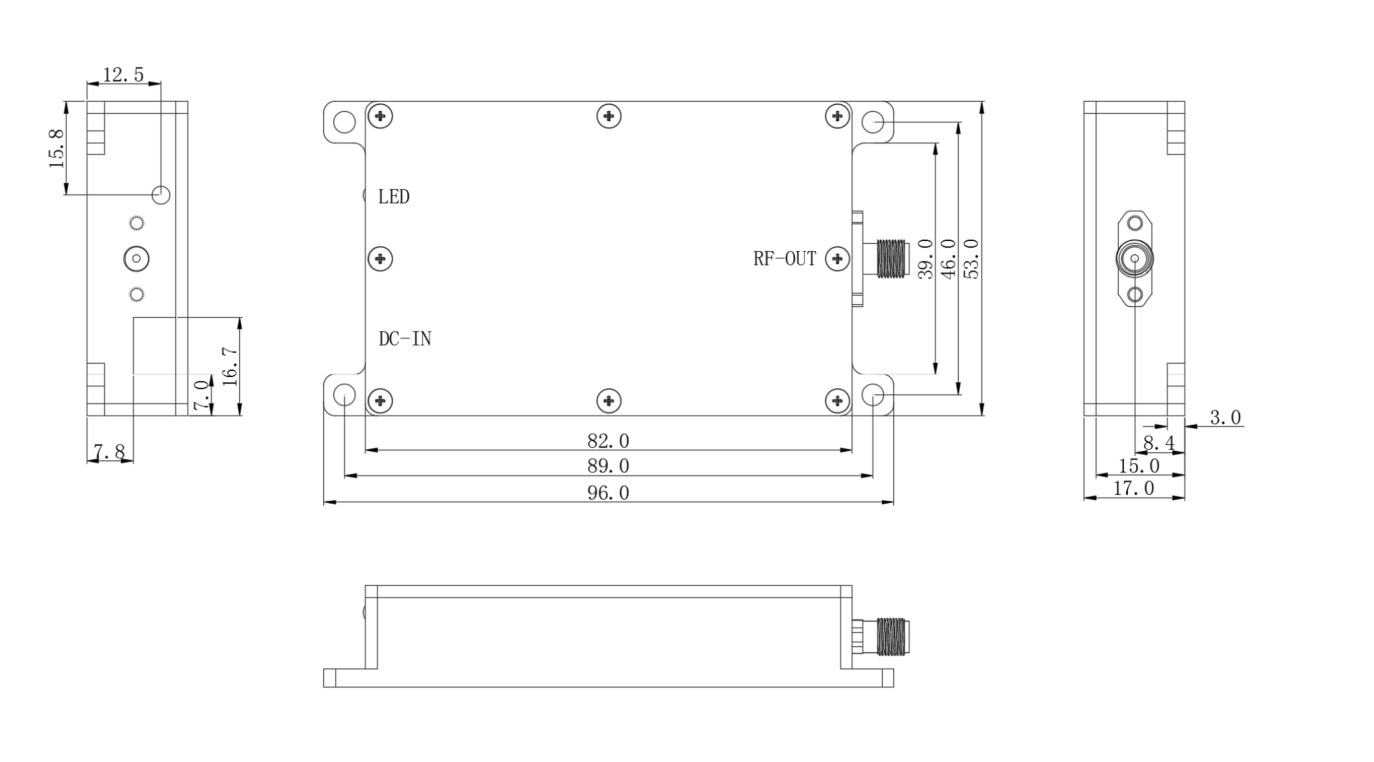

Product Dimensions

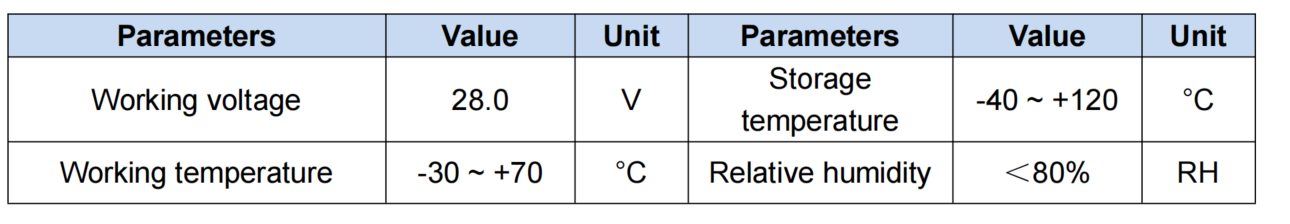

Working conditions

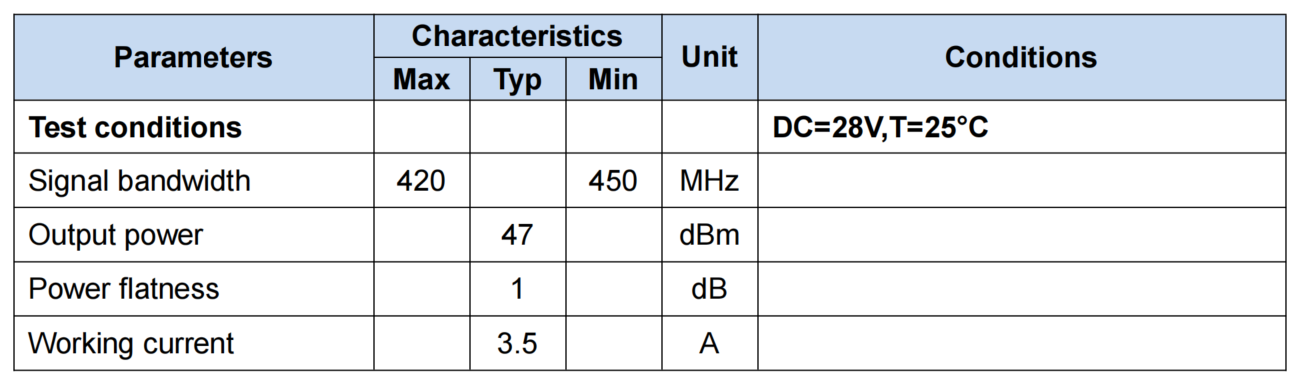

Electrical Characteristics
