YTNSM-02400250-P47 is a wireless signal shielding module dedicated to 2400-2500MHz signal. This module has the advantages of high average output power, good in band flatness, small upper and lower sideband offset and so on.
Product Specifications
Signal bandwidth: 2400-2500MHz
Output power: 47dBm
Working voltage: 28V
Power flatness: <1 dB
Upper sideband drift: <20 MHz
Lower sideband drift: <10 MHz
Product Application

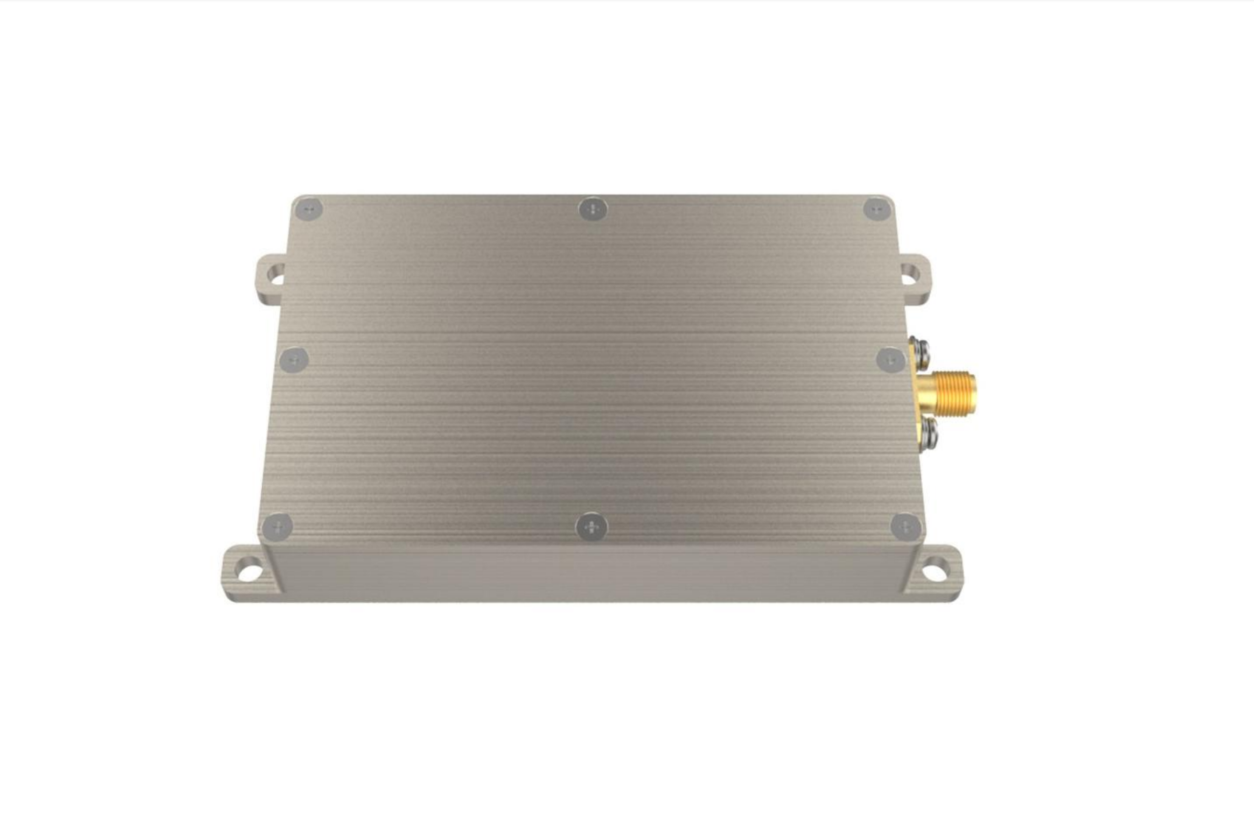

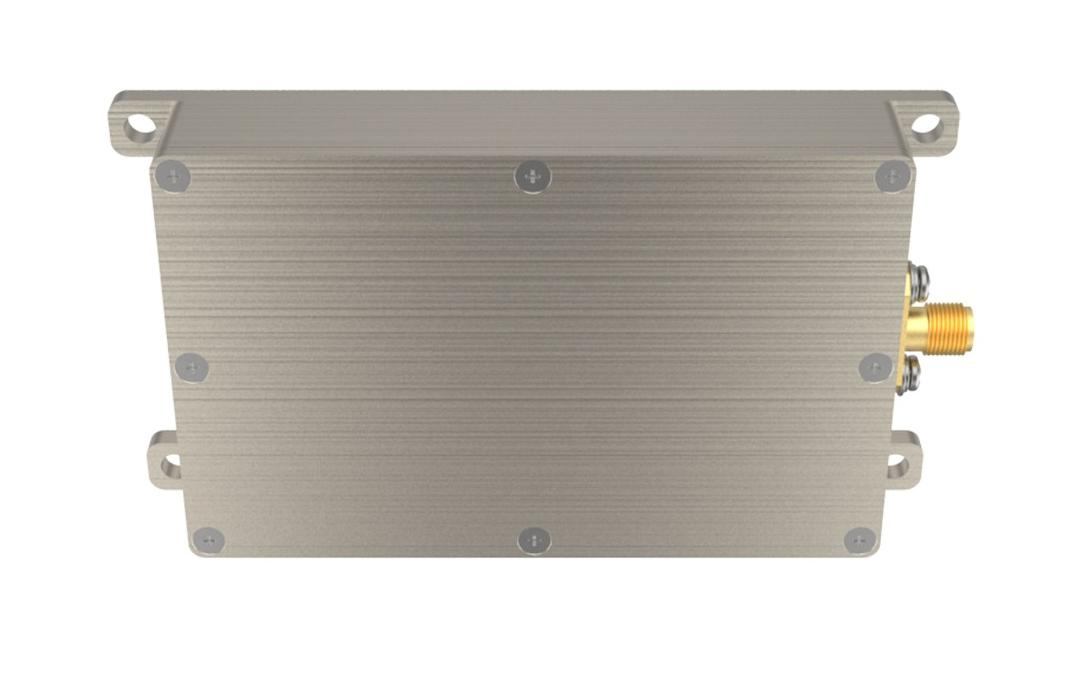

Product Display

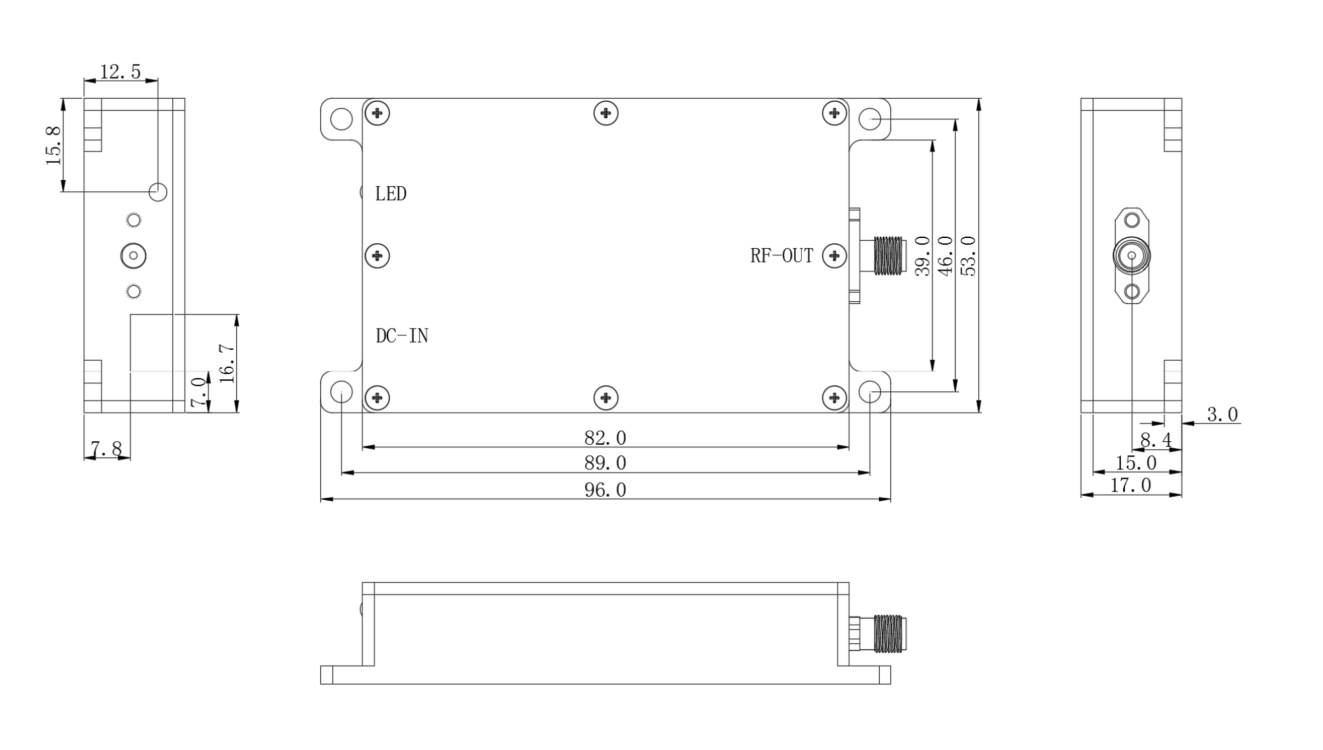

Product Dimensions
Working Conditions

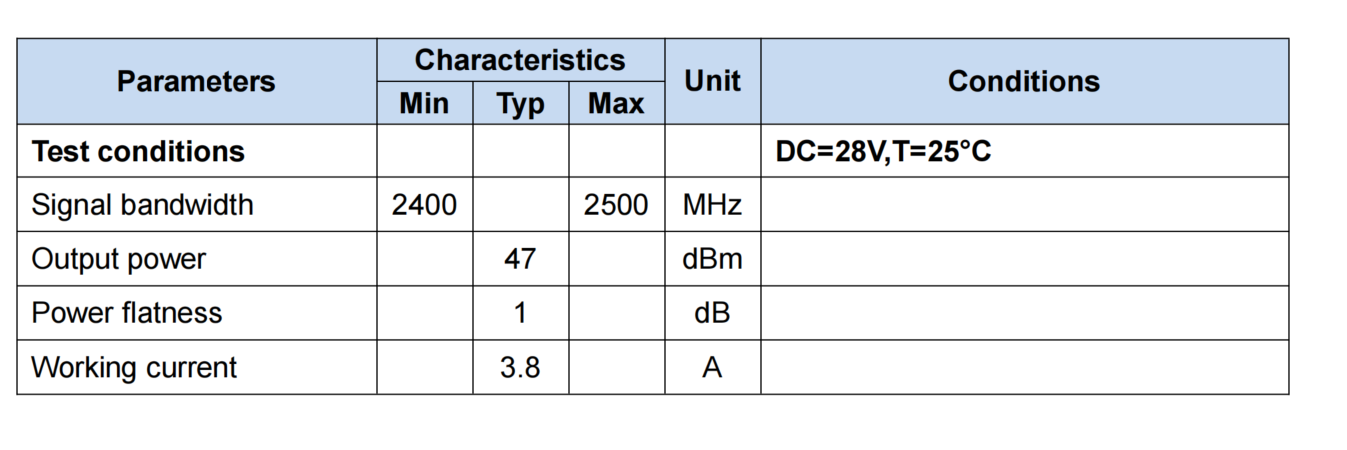

Electrical Characteristics
