YTNSM-05720585-P47 is a wireless signal shielding module dedicated to 5700-5900MHz signal. This module has theadvantages of high average output power, good in band flatness, small upper and lower sideband offset andso on.
Product Specifications
Signal bandwidth: 5700-5900MHz
Output power: 47dBm
Working voltage: 28V
Power flatness: <1 dB
Upper sideband drift: <10 MHz
Lower sideband drift: <10 MHz
Product Application

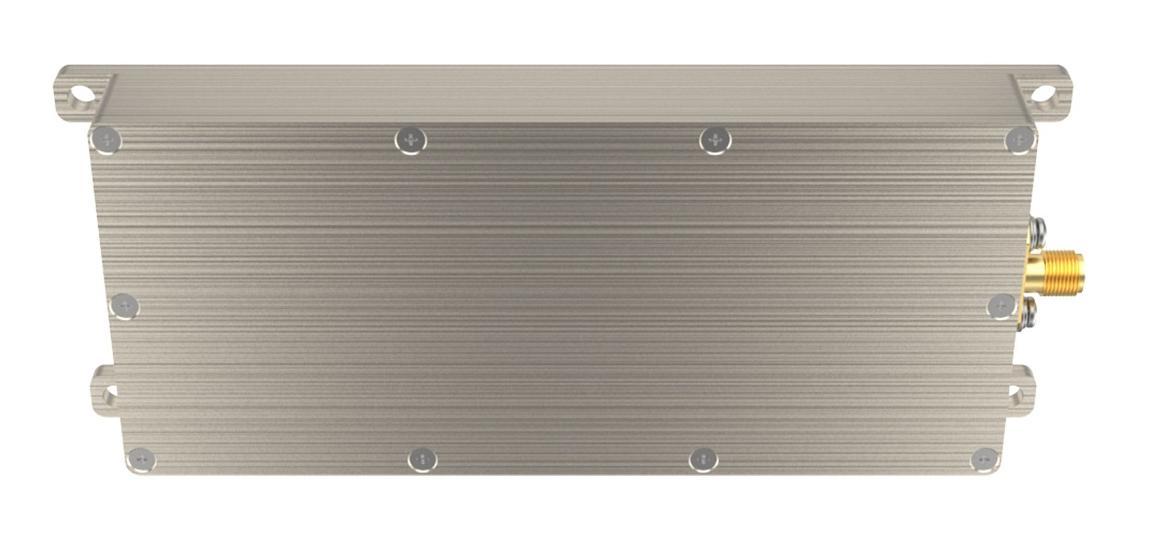

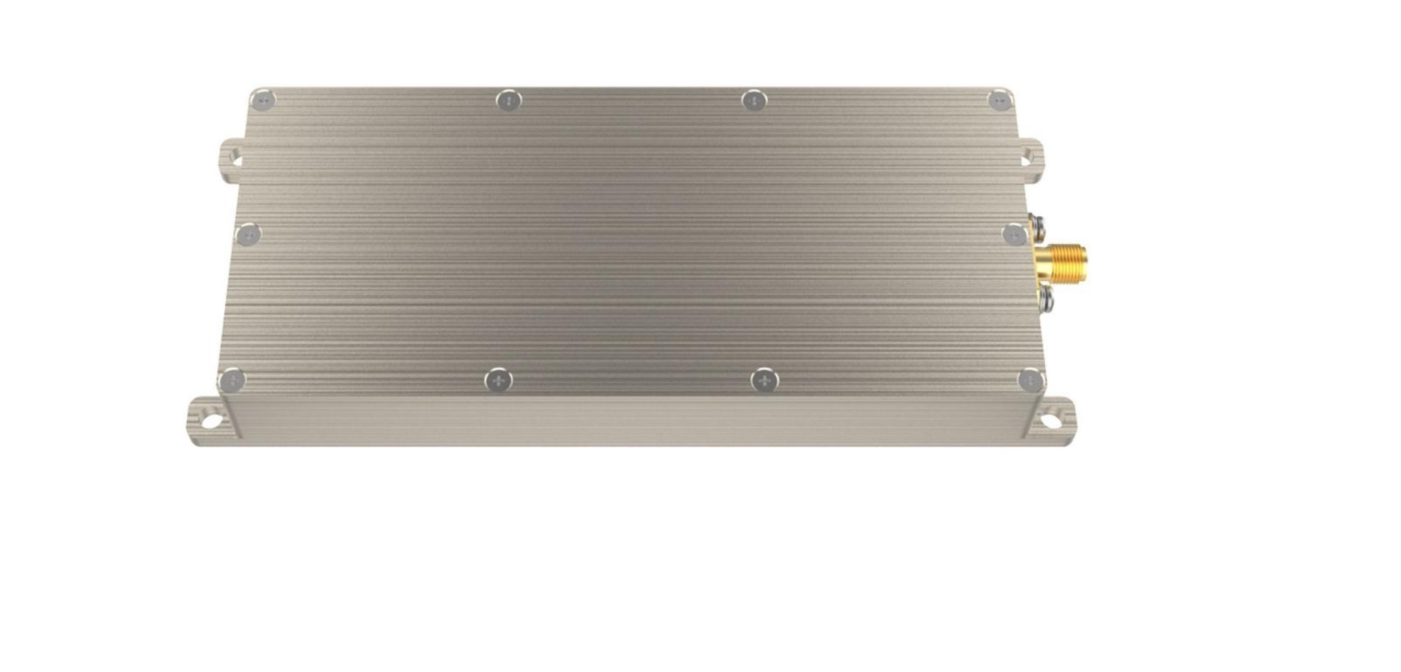

Product Display

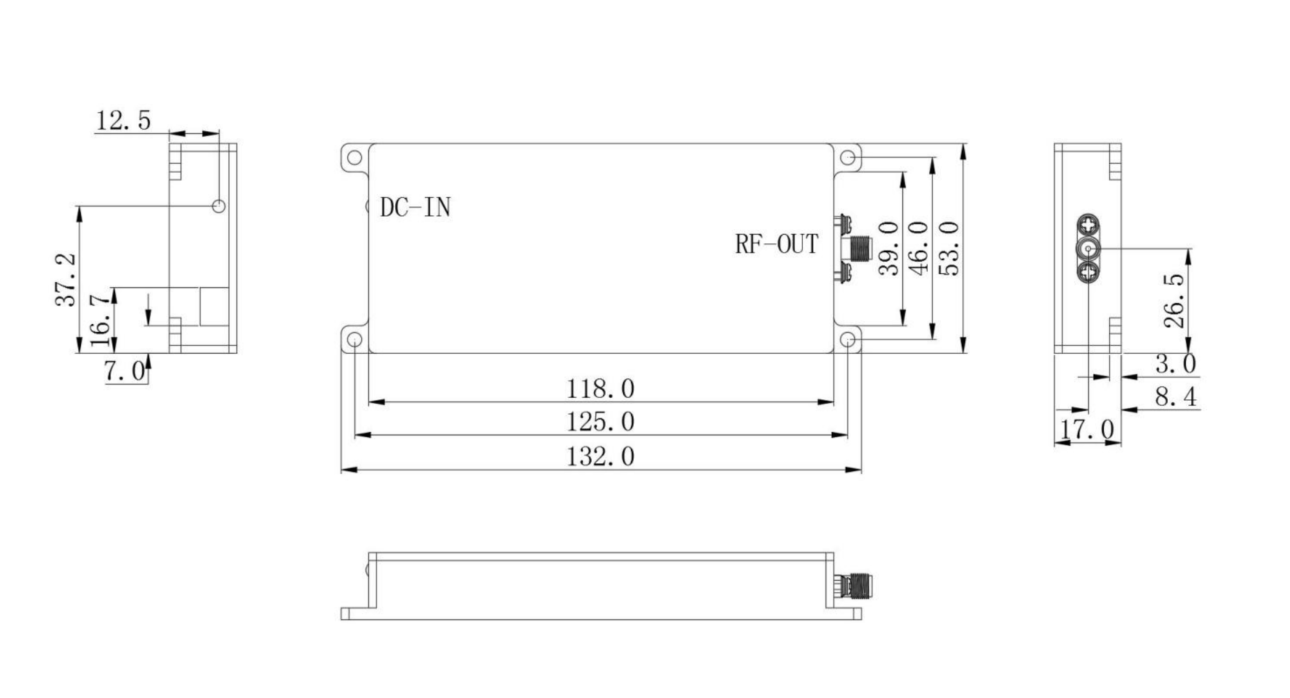

Product Dimensions

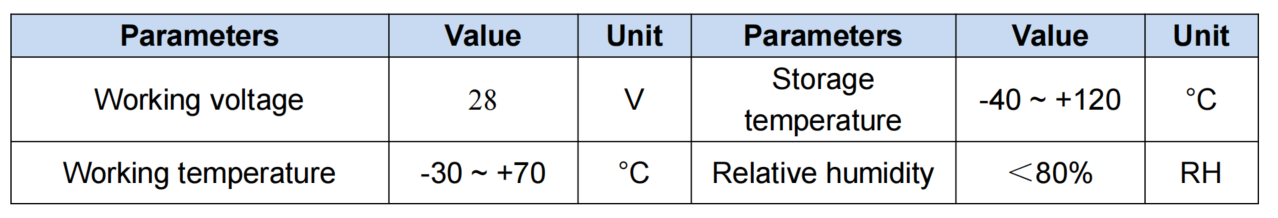

Working Conditions

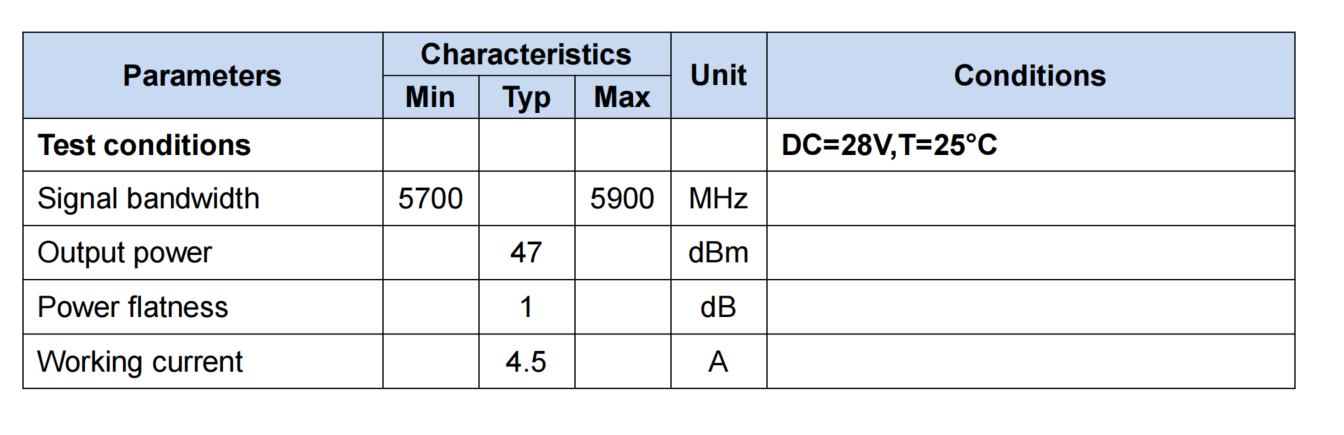

Electrical Characteristics
