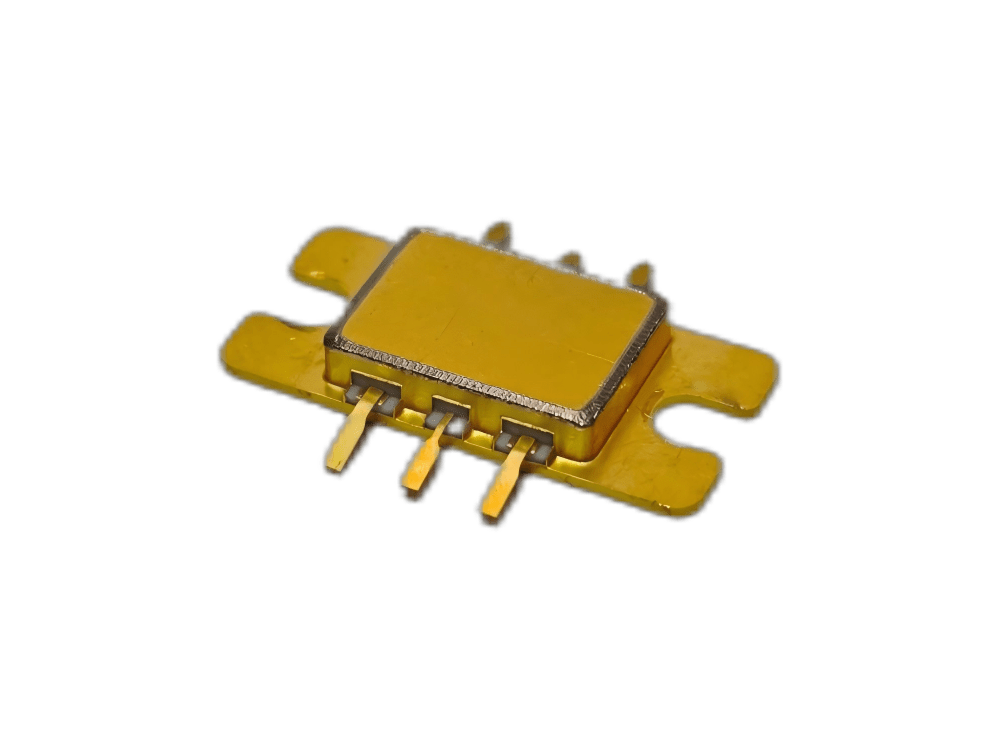

20W Ku-band Matched Power Amplifier

20W Ku-band Matched Power Amplifier
Category Tag
Ask for Datasheet

Product Parameters:

Frequency Range 13~15GHz
Output Power ~43.5dBm
Small signal gain 29dB
Power Gain 22dB
Drain Efficiency 34%
Bias (Vg, Vd) 200mA，28V
Power Gain Flatness ≤0.5dB
Pulse Width, Duty Cycle 500ns，0.1%
Package dimension 8.7mm*18mm*2.5mm
