Product Functions

a） Working mode switching:Receive mode, Transmit mode, Simultaneous

transmit/receive (T/R) mode;

b） Transmitting power amplification, receiving low noise amplification;

c） Receive sidelobe weighting;

d） Receiving auxiliary channel;

Product Features

a） Lightweight;

b） Low profile;

c） 2D electronic scanning;

d） Support multiple working modes;

e） Multi-platform compatibility

Product composition

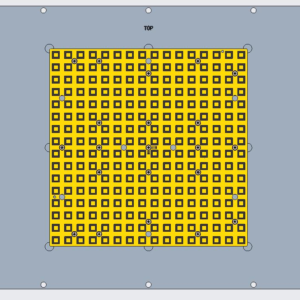

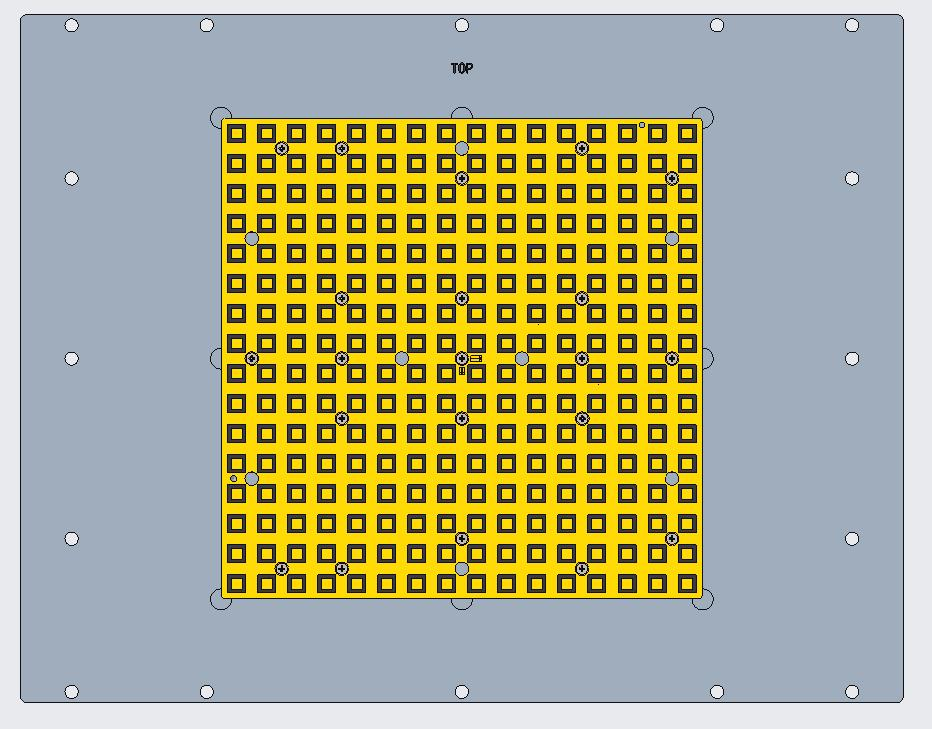

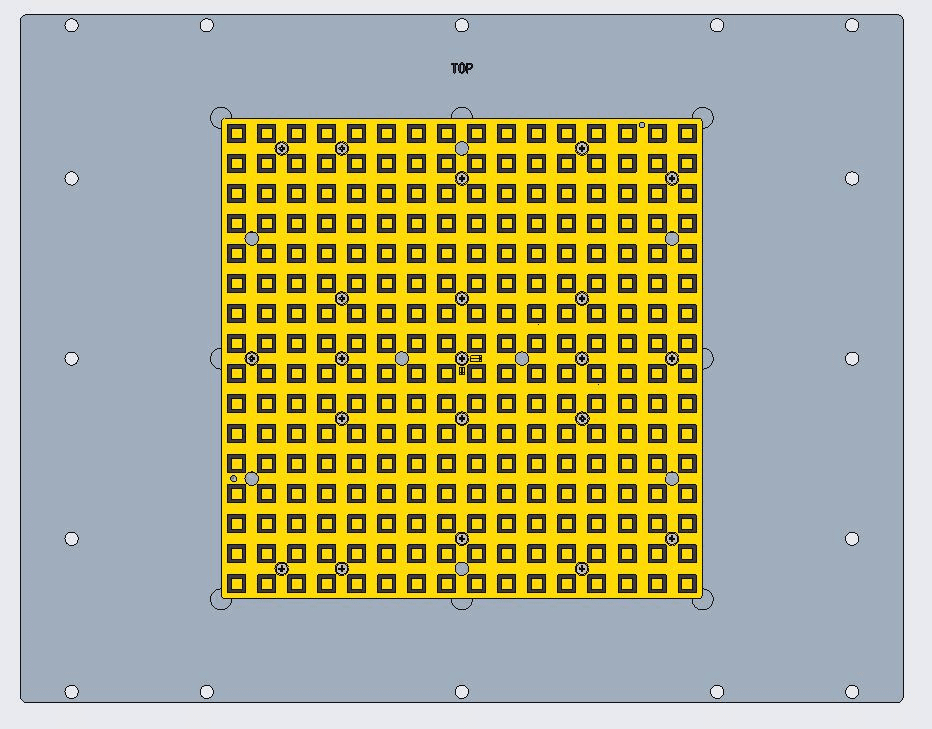

The phased array antenna is mainly composed of the following parts:

a） antenna array

b） T/R Module;

c） Beam Control Board;

d） Feed Network;

e） Sum-Difference Network;

f） RF Cables;

g） Structural Components;

h） Antenna

i) Heat Sink Plate.
