Product Functions

a） Working mode switching: receiving work, transmitting work, sending and

receiving work at the same time;

b） Transmitting power amplification, receiving low noise amplification;

c） Receive sidelobe weighting;

d） Support beam broadening;

e） Work status returns.

Product Features

a） Lightweight;

b） Low profile;

c） 2D electronic scanning;

d） Support multiple working modes;

e） Multi-platform compatibility.

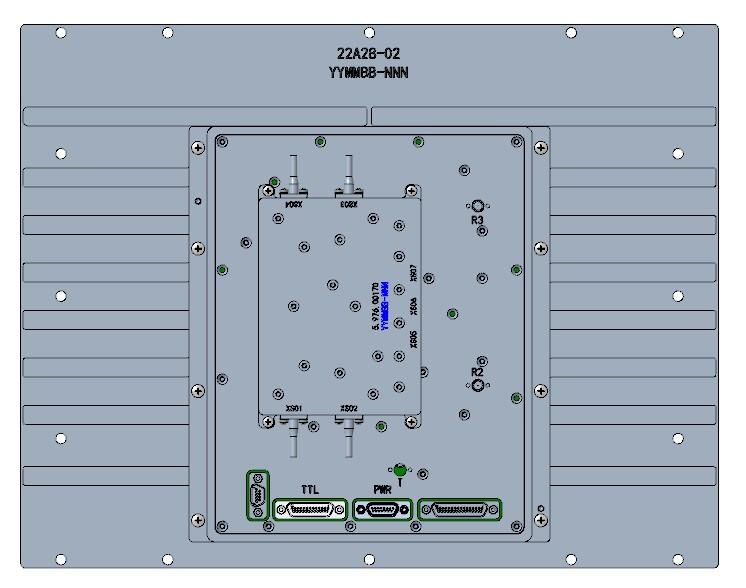

Product composition

The phased array antenna is mainly composed of the following parts:

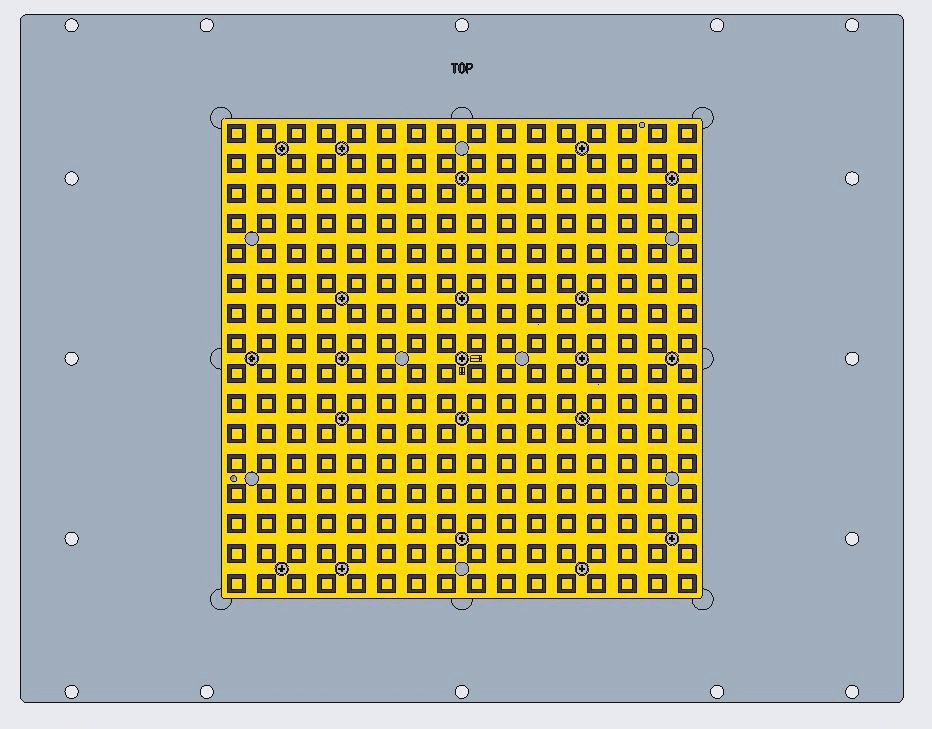

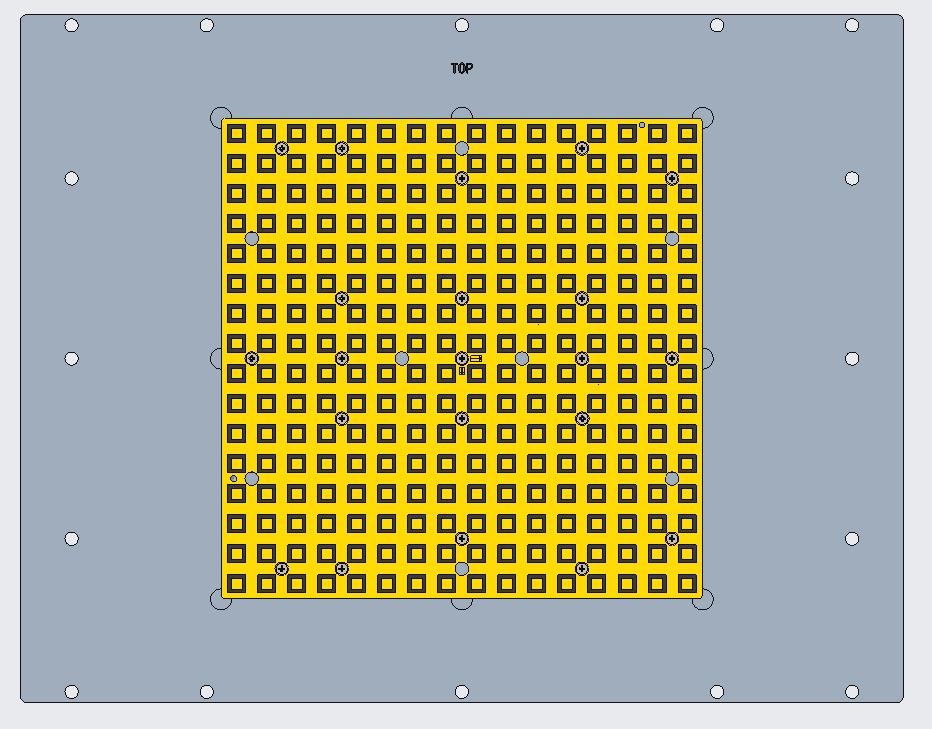

a） antenna array

b） T/R Module;

c） Beam Control Board;

d） Feed Network;

e） Sum-Difference Network;

f） RF Cables;

g） Structural Components;

h） Antenna Heat Sink Plate.
