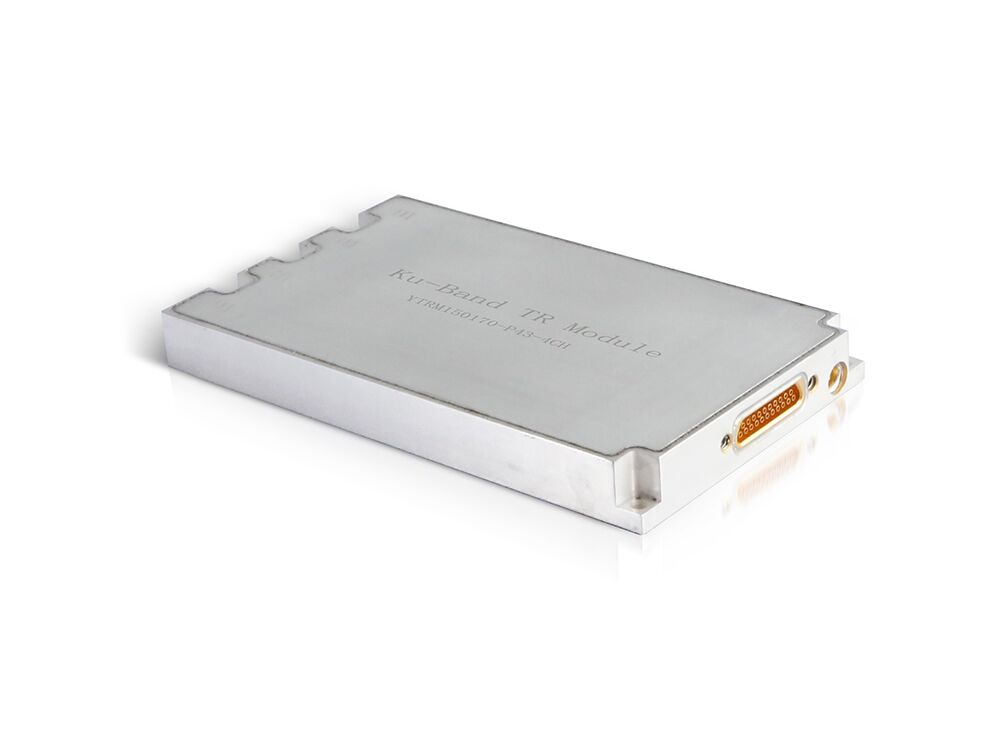

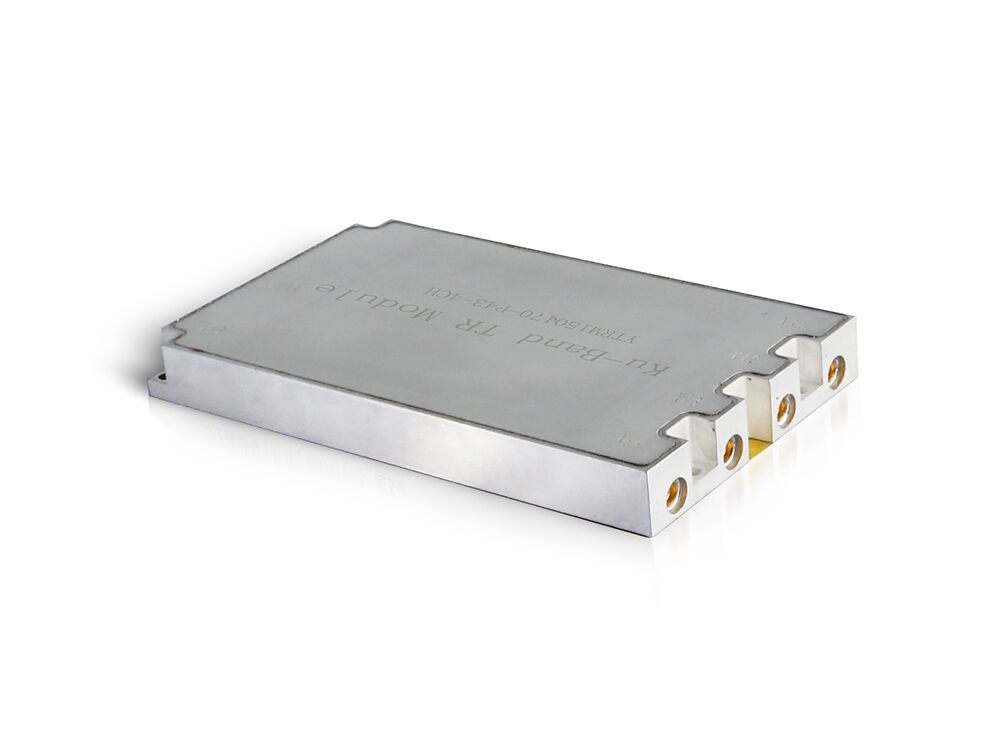

The Ku-band TR module features 4-channel transceiver functionality, integrated digital phase shifting and attenuation, and operates in a time-division pulse system.
| Band | Ku-band |
| Channels | 4 |
| Working Mode | Pulse |
| Min Freq.(GHz) | 15 |
| Max Freq.(GHz) | 17 |
| Max TX Pulse Width(us) | 40 |
| Duty Cycle | 30% |
| TX Output Power(dBm) | 43 |
| RX Gain (dB) | 23 |
| RX Noise Figure(dB) | 3.7 |
| Dimensions(mm) | 89 x 52.6 x 9.5 |
| VDC(V) | +28 & +6.5 |
