Product Introduction

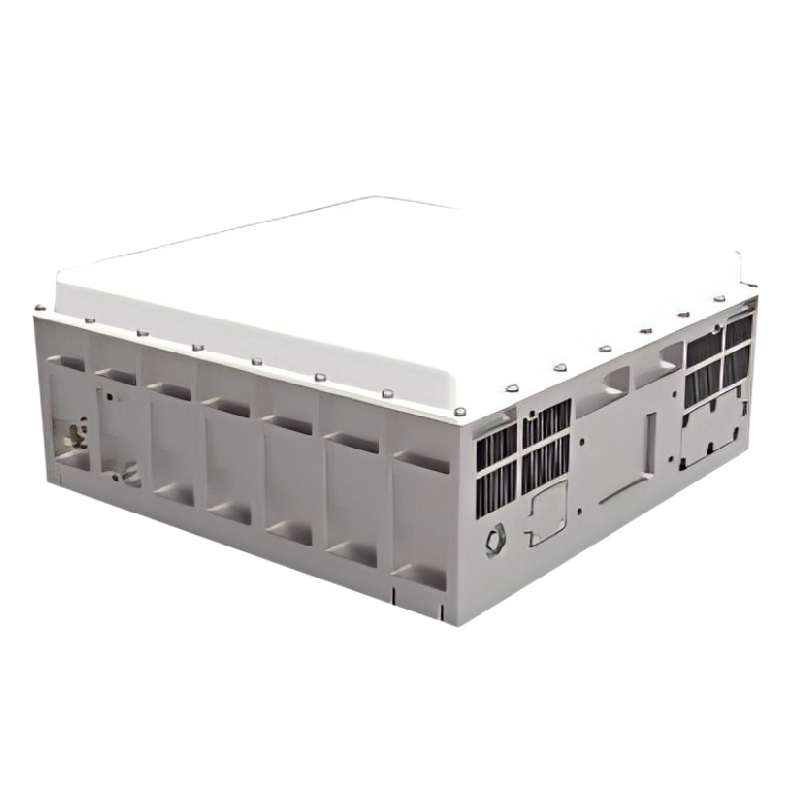

◆Function: The antenna consists of an radome, antenna array assembly, beam control power board, and heat dissipation assembly, and has the following functions:

1. Working Mode Switching: Continuous receiving, pulse transmitting, and pulse receiving/receiving switching;
2. Transmit power amplification and spatial power synthesis, low-noise receiving amplification;
3. Working status reporting, temperature and current monitoring;
4. Combined with the rear compartment, it can achieve IP67 dust and water resistance, and the cooling fan has IP68 dust and water resistance;
5. Adaptive fan speed.

◆Features: High integration, lightweight, high performance, and high reliability.

◆Applications: Widely used in anti-radar and other platforms.

Performance Indicators

Indicator Name	Technical Specifications	Remarks
Operating Frequency Band	9.2GHz~10GHz	Frequency can be specified according to customer requirements
Antenna Type	Active Phased Array Antenna 2D scanning	±45° Scan Coverage
Polarization	Vertical polarization	Customizable
EIRP	≥80dBm
Overall Receiver Gain	≥55dB	Antenna Gain + Active Gain
G/T	≥0.5dB/K	Weighting
Receiver Sidelobe Level	≤-22dB	Adjustable Weighting Depth
Transmitter Sidelobe Level	≤-12dB
Scan Drop	≤3dB	Scan ±45°
Beam Switching Time	≤70us	Includes data transmission time
Transmit/receive pulse switching time	≤150ns	Typical value
Overall power consumption	≤235W	20% transmit duty cycle
Antenna weight	≤3.5kg
Overall dimensions	315mm×315mm×65mm
