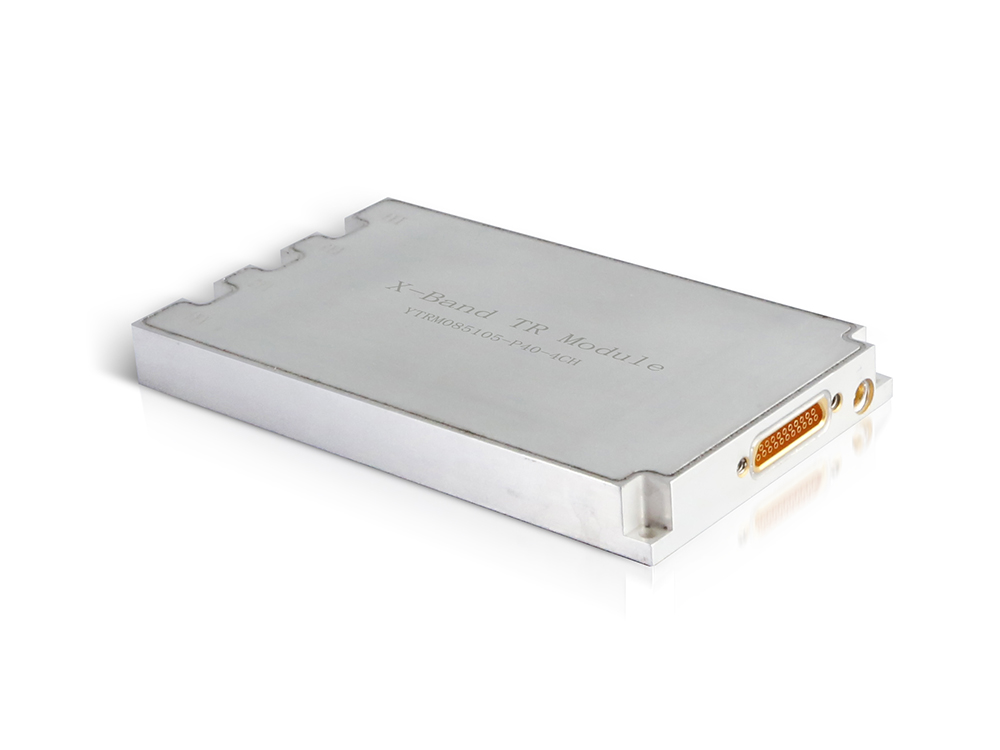

X-band 4-Channel 10W TR Module

X-band 4-Channel 10W TR Module

Categories TR Modules, X-band Tags 10W, 4-channel, X-band

Product Parameters:

Band	X-band
Channels	4
Working Mode	Pulse
Min Freq.(GHz)	9
Max Freq.(GHz)	10.5
Duty Cycle	30%
TX Output Power(dBm)	40
RX Gain (dB)	21
RX Noise Figure(dB)	3.7
Dimensions(mm)	89 x 52.6 x 9.5
VDC(V)	+28 & +6.5
