| Frequency | 8~12GHz |
| RX Linear Gain | 29dB |
| RX NF | 1.9dB |
| RX input P-1 | -26dBm |
| RX handling power | 43dBm(pulse width 50ms, duty cycle 10% ,85°C.) |
| 6-bit phase shift, step 5.625 °,RMS | 2.5° |
| 6-bit ATT, step 0.5dB,RMS | 0.3dB |
| TX saturation output power | 41dBm@Pin=0dBm |
| TX PAE | 40% (100μs,DC:10%) |
| 6-bit phase shift, step 5.625 °,RMS | 3° |
| Power consumption of TX | 28V:1.1A;2.5V: 50mA; 5V: 50mA;-5V: 25mA |
| Power consumption of RX | 2.5V:230mA;5V:70mA;-5V:25mA |

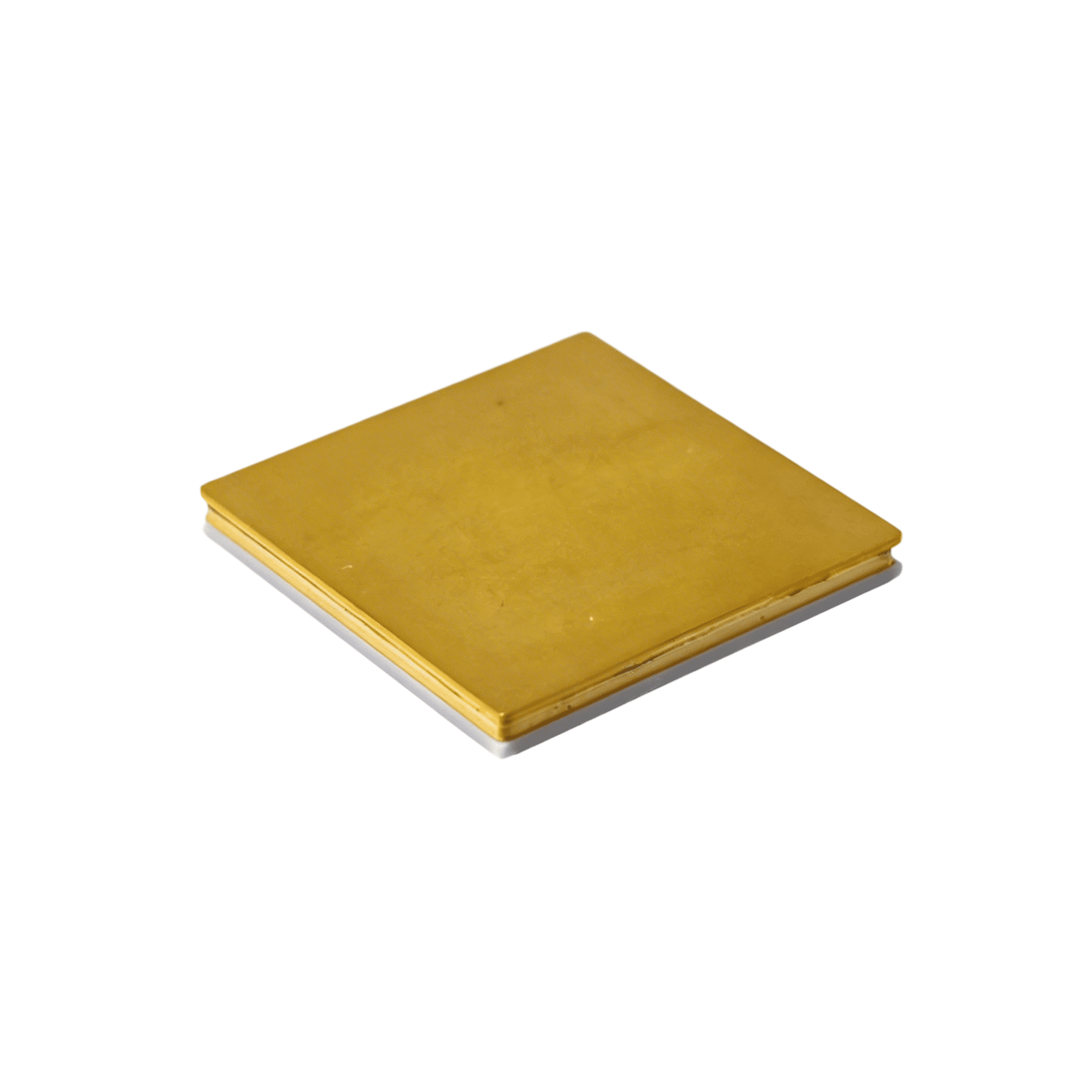

| Package Dimensions | 14.50mm × 15.50mm × 3.85mm |
