Frequency Range: 8.5~10.5GHz
Channels: 4-Channel TR integrated
TX Output Power: ≥37dBm @PSAT
RX Gain: ≥27dB
RX Noise Figure: 3.5dB (Typ.)
Control: 6-bit phase shifter and attenuator
Size: 90x130x10mm
Weight: ≤0.4kg

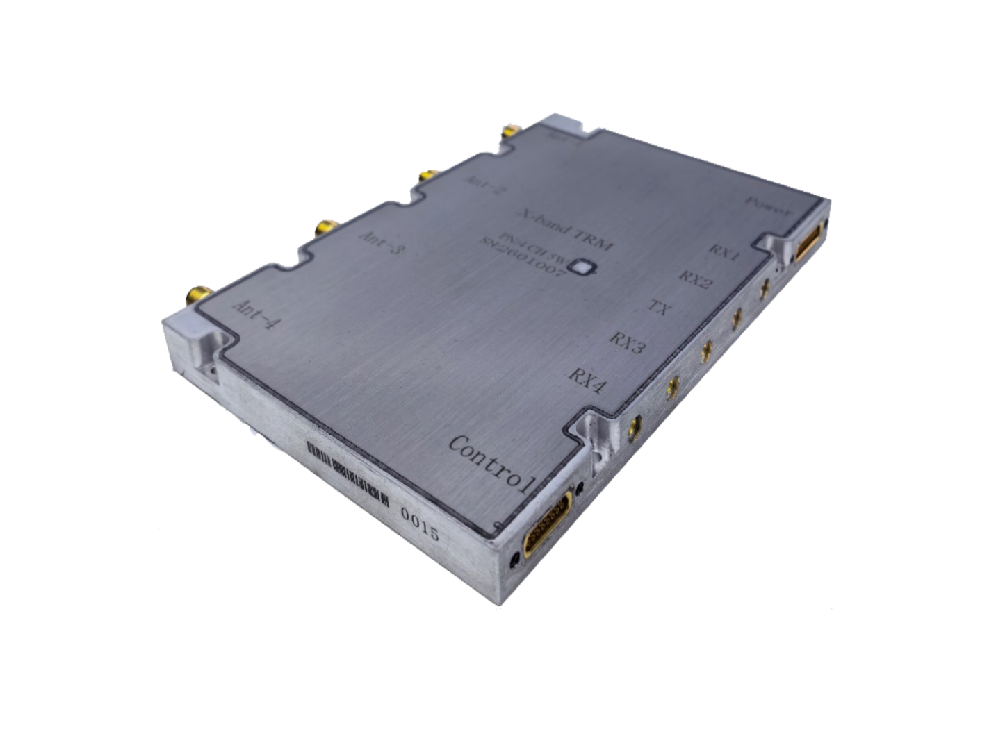

The YTRM085105-P37-4CH is an 8.5GHz~10.5GHz 4-channel 5W T/R module. Features: Small Size and Light Weight; 50 Ohms Input and Output Matched; Built-In Control and Protection Circuits.
| Items | Technical Parameters | Remarks |
| TX Operating Frequency | 8.5~10.5GHz | |
| TX RF Output Power @PSAT | ≥37dBm | |
| TX Power Flatness | ≤±1dB | |
| TX Duty Cycle | 50%~100% | CW is main mode (Important) |
| TX Pulse Width | 0.5~300uS | We have CW mode |
| TX Rise/Fall time (Pulse Performance) | ≤50nS | |
| TX Power Added Efficiency | 30% (Typ.) | |
| RX Gain@0dB Attenuation, 1 channel | ≥27dB | Port to Port. Including power division and combination networks |
| RX Noise Figure @0dB Attenuation | 3.5dB (Typ.) | |
| VSWR | 1.8 (Typ.) | |
| T/R Switching Time @1kHz TTL | ≤400nS | * |
| Spurious Signals | ≥-60dBc |
