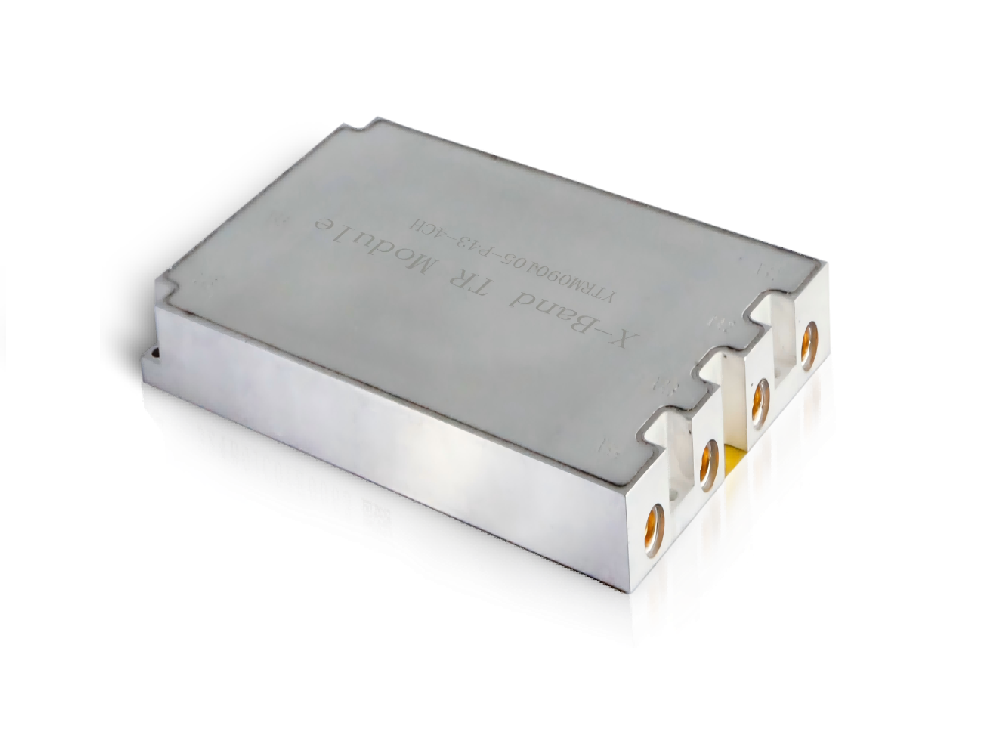

The YTRM090105-P43-4CH-04 analog T/R module features 4-channel transceiver functionality, integrating digital phase shifting, attenuation, and time-division pulse operation.
| Items | Technical Parameters | Remarks |
| TX Output Power | ≥43 (room temperature, low temperature) ≥42.5 (high temperature)dBm | |
| TX Transmit In-band Flatness | ±0.6dB | |
| TX Transmit Channel Drive Power(pulse signal) | 12±1dBm | |
| TX Transmit Channel Amplitude Consistency in same freq. and multi channels | ±0.6dB | |
| TX Maximum Pulse Width | 100us | |
| TX Transmit Channel Phase Consistency(Same Frequency, 0 State) | ±20° | |
| TX Phase Shift Accuracy | ≤ 7.5 (RMS)° | |
| TX Spurious Suppression(f0 ± 0.75 GHz) | ≤ -65dBc | |
| RX Receive Gain(room temperature) | 21 ± 1.5dB | |
| RX Gain Consistency | ≤ ±2dB | |
| RX Noise Figure | ≤ 3.2dB (room temperature), ≤ 3.7dB (full temperature range) | |
| RX Attenuator | 6-bit, step 0.5, deviation (RMS) ≤ 1dB | |
| RX Phase Shift Accuracy | ≤ 5 (RMS)° | |
| RX Input P-1dB | ≥-30dBm | |
| RX Phase Consistency | ≤ ±20° | |
| RX Combined Port VSWR | ≤ 2.0 | |
| RX Antenna Port VSWR | ≤ 2.0 | |
| Operating Frequency | 9–10.5GHz | |
| Tx/Rx switching time | ≤ 150ns | |
| Phase Shifter | 6 bits, step:5.625° | |
| Maximum Transmit Pulse Width | 40μs | |
| Maximum Duty Cycle | 30% |
