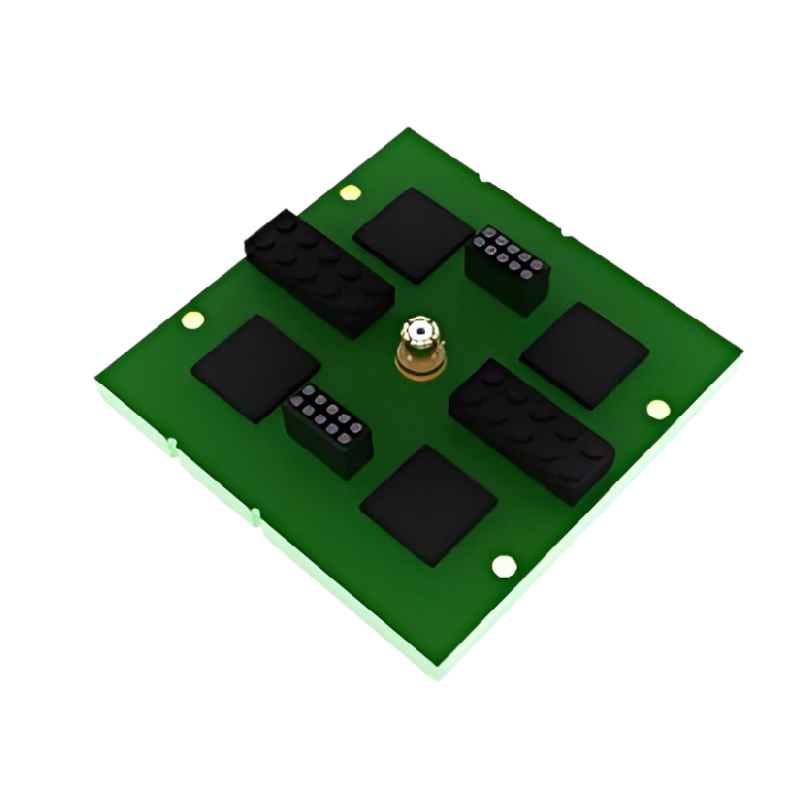

◆Function: The standardized subarray is based on a multi-channel silicon-based chip and microwave multilayer PCB board integrated design, containing 16 transceiver channels, and can realize functions such as RF signal transmission and reception, beam scanning, and operating status feedback.
◆Features: The standardized subarray adopts surface mount technology. Compared with traditional phased array T/R modules, this standardized subarray has higher performance consistency and smaller profile size, making it more suitable for mass production and providing a more cost-effective solution for phased array users.
◆Applications: Widely used in various radar and communication platforms.
| Parameters | Units | Minimum | Typical value | Maximum | Remarks |
| Frequency | GHz | 8.5 | 10.5 |
| |

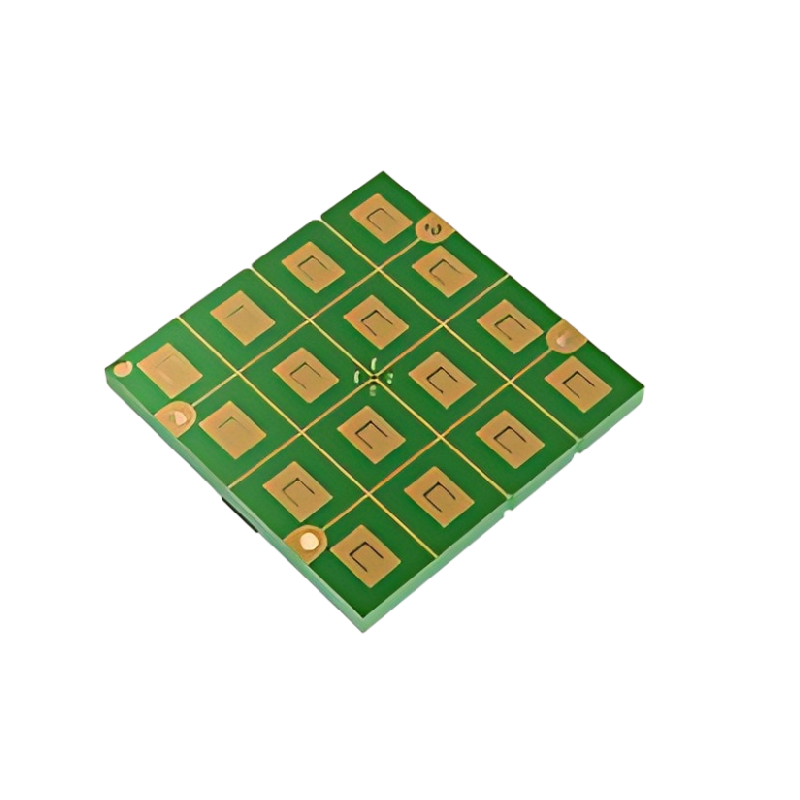

| Number of Array Elements | Elements | 16 | 4×4 Layout | ||
| EIRP | dBm | 54 | |||
| G/T value | dB/K | -13 |
| ||
| Polarization | Linear Polarization |
| |||
| Channel Spacing | mm | 16.5 | |||
| Beam Scan Range | ° | ±45 | |||
| Standing Wave Ratio | 2 | ||||
| Transmission Efficiency | 20% |
| |||
| Overall dimensions | mm | 65.8×65.8 | Length and Width | ||
