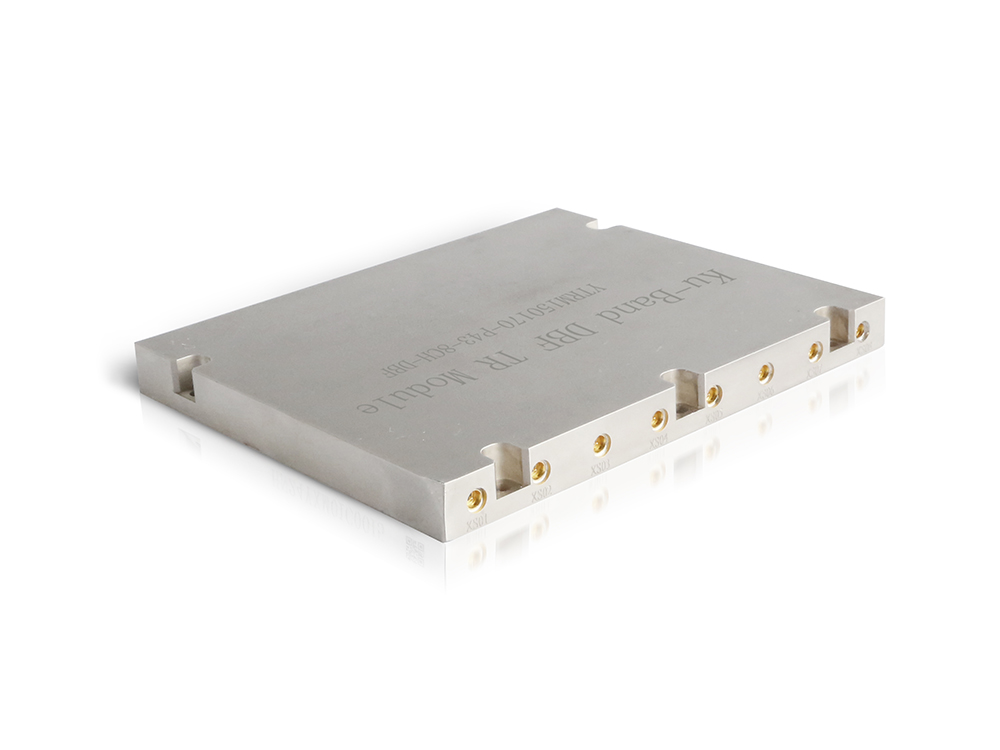

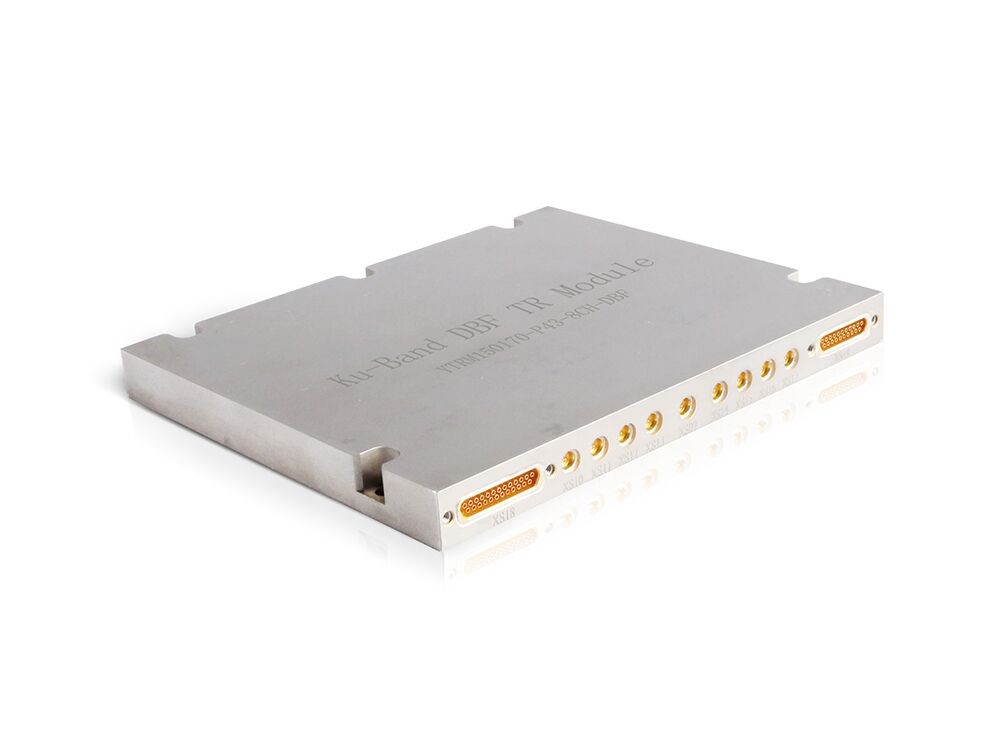

The Ku-band 20W DBF TR module is designed for transmitting analog phased arrays and receiving DBF (Digital Beamforming) scenarios. Each receive channel includes down-conversion functionality.
| Band | Ku-band |
| Channels | 8 |
| Working Mode | Pulse |
| Min Freq.(GHz) | 15 |
| Max Freq.(GHz) | 17 |
| IF Freq.(MHz) | 175 |
| Max RF Pulse Width(us) | 100 |
| Duty Cycle | 30% |
| TX Output Power(dBm) | 43 |
| RX Gain (dB) | 50 |
| RX Noise Figure(dB) | 4 |
| Dimensions(mm) | 120 x 100 x 11 |
| VDC(V) | +28 & +5.5 |
